Viavi MAP-330AX-B Multiple Application Platform
Viavi MAP-330AX-B is a third-generation 3-slot optical test mainframe with HTML-based GUI, touchscreen controller, and USB 3.0 support for modern fiber optic test applications.
Product details
| Model | MAP-330AX-B |
| Manufacturer | Viavi |
| Category | Telecommunications Testers |
| Availability | Made to order |
Description
Overview
The Viavi MAP-330AX-B is a third-generation Multiple Application Platform rackmount mainframe representing the latest evolution of the MAP system since 2001. The MAP-330AX-B builds on proven strengths while adding modern features including an HTML-based GUI for multi-user environments and backwards compatible support for existing MAP-200 series automation.

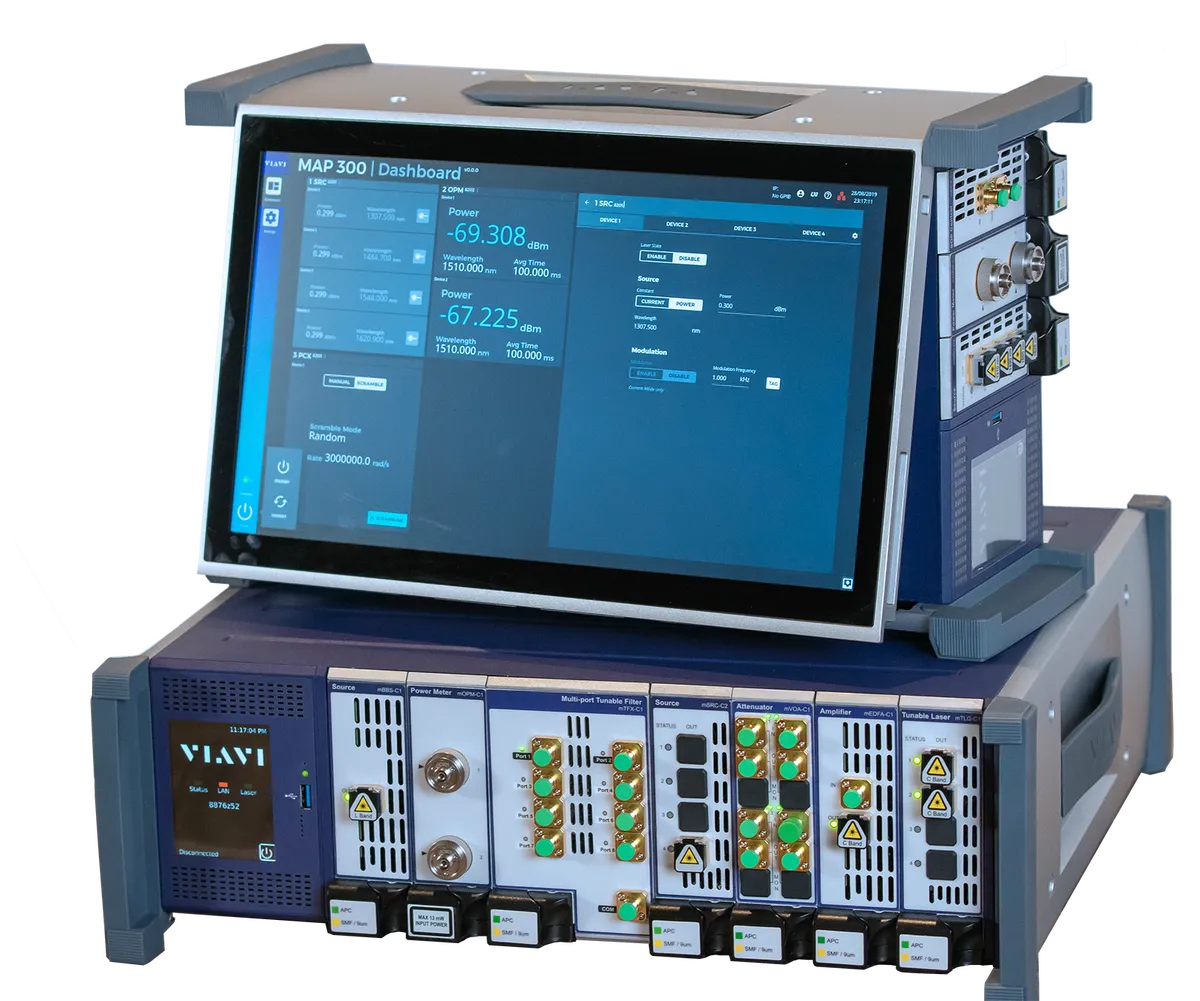

The MAP-330AX-B features a field-replaceable controller with an integrated 3.5-inch LCD touchscreen for network and system status monitoring. Available in rackmount configuration, it delivers 3 RU height and supports both hot-swappable modules and multi-user access via web-based interfaces.
Key Features
- 3-slot capacity for customizable optical test setups
- HTML-based graphical user interface supporting multi-user environments
- Integrated 3.5-inch LCD touchscreen on field-replaceable controller
- USB 3.0 port with support for 15.6-inch external monitor
- SCPI logical interface with remote programming via TCP/IP (LXI), GPIB, and direct socket
- Backwards compatible with MAP-200 series cassettes and automation
- Optional GPIB, Ethernet, USB and trigger expansion modules
- Hot-swappable modules for field upgrades
- IVI-compliant drivers with LabVIEW, LabWindows, Visual C++, and Visual Basic support
Applications
- General purpose fiber-optic laboratory testing
- Manufacturing test automation for optical components
- DWDM and wavelength selective switch (WSS) testing
- Connector insertion loss and return loss measurement
- Polarization scrambling and OSNR testing
Specifications
| Highlights | On-board 3.5-inch touch screen provides quick access to connection and configuration settings. Graphic User Interface features intuitive dashboard with configurable widgets that correspond to each populated cassette. Multi-user access supported by web based interface. The industry’s largest selection of hot swappable modules for optical communications test and measurement in lab & manufacturing environments Backward compatible with MAP2xx series cassettes and remote-control support |
| Applications | General purpose fiber-optic lab use Manufacturing test automation DWDM/WSS test Connectivity IL/RL Polarization scrambling and OSNR |
| Compliance | MAP Series cassettes include amplifier and source cassettes classified as either Class 3B or Class 1M Laser products. While operating in a MAP Series mainframe, cassettes meet the requirements of the IEC 60825-1 standard and comply with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice 50, dated June 24, 2007. |
| Model Number | Description |
| MAP-330AX-B | MAP-330A 3 Slot 3U Half 19-in LightTest Rackmount Mainframe |
