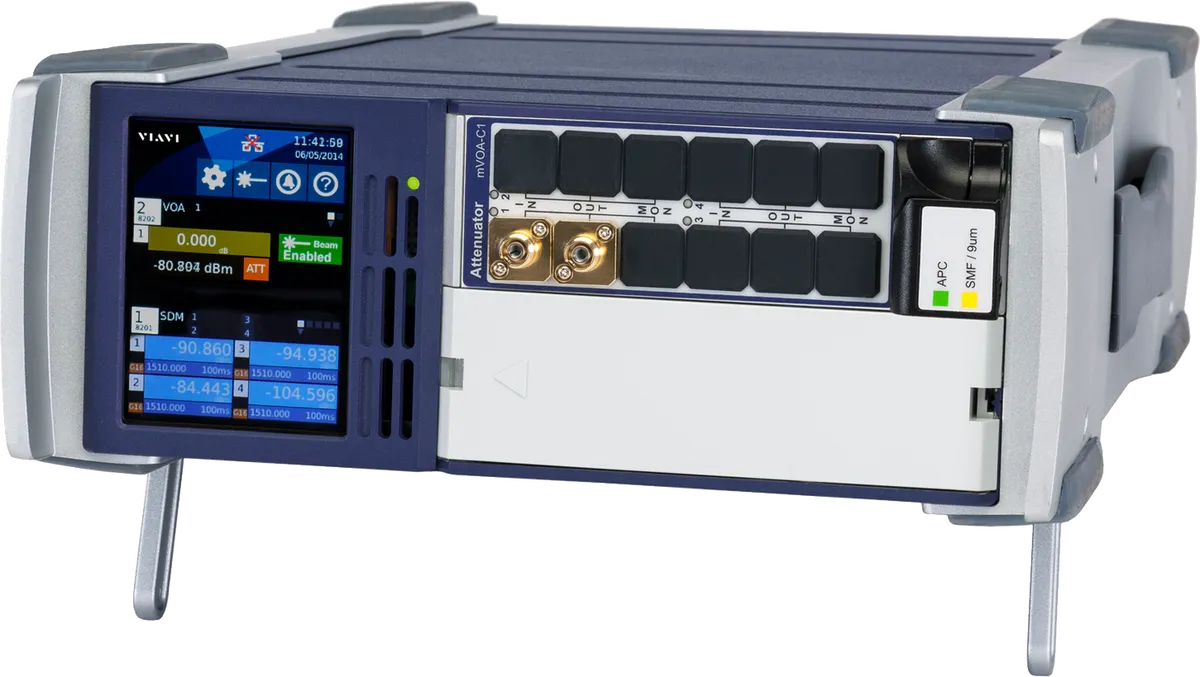

Viavi MAP-220C-A Compact Modular Chassis
Request a quote
Viavi MAP-220C is a compact two-slot modular test chassis for optical device development and manufacturing with flexible orientation and reduced footprint.
Product details
| Model | MAP-220C-A |
| Manufacturer | Viavi |
| Category | Telecommunications Testers |
| Availability | Made to order |
Description
Overview
The Viavi MAP-220C is a compact two-slot modular chassis designed for optical device and subsystem development and manufacturing. It provides a flexible, cost-effective platform for optical test switching and signal conditioning with configuration options including horizontal or vertical placement and front or rear test access. The system supports both new LightDirect optical switch modules and is backward compatible with legacy switching solutions.
Key Features
- Two-slot modular chassis design
- Compact footprint reducing rack space by up to 4x compared to traditional solutions
- High-visibility touchscreen interface GUI for intuitive operation
- Flexible configuration: horizontal or vertical bench placement or side-by-side 19-inch rack mounting
- Front or rear optical fiber access for test connectivity
- Pop-up front and rear feet with bumpers for stable stacking
- Backward compatible with legacy SB and SC optical switches
- Interfaces include GPIB and RJ45 Ethernet for system control
- Support for new mOSW series optical switches and LightDirect modules
Applications
- Lab research and development of active optical devices such as transponders, amplifiers, and line cards
- Manufacturing of active optical devices and subsystems
- General-purpose optical test switching for passive and active optical device work
- Optical signal conditioning in test and development environments
Specifications
| Form Factor | Modular |
| Form Factor | Benchtop |
