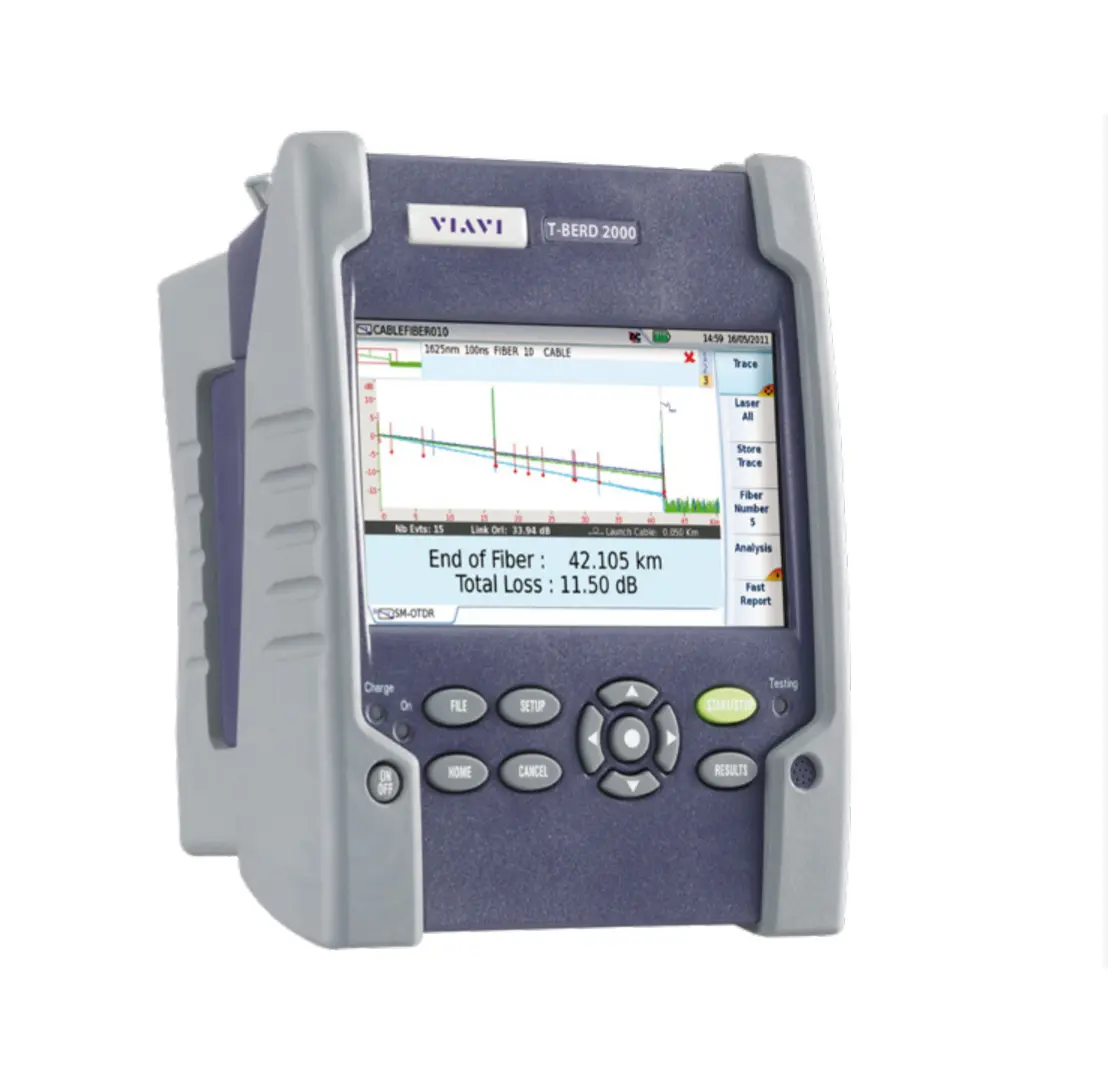

Viavi ETB2000HVT Handheld Modular Test Set

Overview

The Viavi T-BERD/MTS-2000 is a handheld modular test set designed for the installation, turn-up, and maintenance of optical fiber networks across enterprise, metro, and access networks (PONs). With a large 5-inch color touchscreen display and hands-free carrying case, this portable tester integrates optical power meter, visual fault locator (VFL), and comprehensive OTDR capabilities for field technicians. The modular architecture allows equipment to be configured with only the specific capabilities needed, maximizing return on investment while maintaining a compact, easy-to-use form factor.

Key Features

• Large 5-inch TFT color touchscreen display (800x480 WVGA resolution)
• Integrated optical power meter and visual fault locator (VFL) options
• Automated IL/ORL testing with FiberComplete application for fault finding
• OTDR (Optical Time Domain Reflectometry) with SmartOTDR test mode for fast deployments
• CWDM optical spectrum analyzer application
• PON selective power meter for fiber-to-the-home applications
• Digital microscope for connector inspection with IEC pass/fail analysis
• Modular design: add only required test capabilities
• Rechargeable lithium-polymer battery with 8-9 hours operation
• Flexible connectivity: Ethernet, USB, Bluetooth, and WiFi (optional)
• Hands-free carrying case included

Applications

• Fiber optic network installation and commissioning
• LAN/WAN/Metro/Access network turn-up and testing
• PON/FTTH network installation and maintenance
• Automated insertion loss and optical return loss testing
• CWDM system testing and troubleshooting
• Connector inspection and quality assurance

Technical Specifications

• Display: 5-inch TFT color touchscreen, 800x480 WVGA resolution
• Memory: 8 GB internal (1 GB for storage)
• Battery: Lithium-polymer, 8-9 hours operation per Telcordia GR-196-CORE
• Power Supply: AC/DC adapter, 100-250V AC input, 50-60 Hz, 12V DC 25W output
• Dimensions: 175 x 138 x 80 mm (6.9 x 5.4 x 3.2 inches)
• Weight: 0.864 kg without modules, up to 1.21 kg with OTDR module
• Operating Temperature: -20 to +50°C (no options/modules), 0 to +40°C (with options)
• Humidity: 0 to 95% noncondensing
• Interfaces: USB 2.0, Mini-USB 2.0, RJ45 Gigabit Ethernet, optional Bluetooth and WiFi

Included Accessories

• Hands-free soft carrying case with shoulder strap
• AC power supply with adaptable plugs (US, Europe, UK, Australia, Japan)
• Online Getting Started manual
