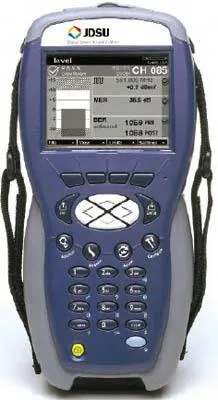

Viavi DSAM6300 Digital Services Analysis Meter

Overview

The Viavi DSAM6300 is a digital services analysis meter combining Viavi's patented Stealth Sweep technology with comprehensive DOCSIS 3.0 testing capabilities. Designed for cable service providers, it provides full triple-play services testing (voice, video, and data) with support for 8 downstream and 4 upstream channel bonding, delivering throughput up to 400 Mbps downstream and 120 Mbps upstream on 8 MHz carriers.

Key Features

• 8 downstream x 4 upstream DOCSIS 3.0 testing with up to 400 Mbps downstream, 120 Mbps upstream
• Stealth Sweep technology for non-interfering forward and reverse sweep operation
• Digital Quality Index (DQI) for identifying and eliminating intermittent problems
• MER range up to 45 dB with improved digital carrier testing
• Integrated Pre-Amplifier for -45dBmV ingress scans and return path troubleshooting
• QAM Ingress analysis to find noise and interferers inside QAM carriers
• VoIP Check option for MOS call quality ratings and issue segmentation
• 24-hour Proof of Performance testing
• Powerful spectrum analysis and upstream 16/64 QAM generator
• Weather and shock-resistant enclosure for field technician durability
• Legacy support for DOCSIS 1.0, 1.1, and 2.0

Applications

• Full DOCSIS 3.0 compliance testing and performance verification
• Triple-play service quality qualification for voice, cable modem, and video
• Digital QAM carrier troubleshooting with DQI and QAM Ingress analysis
• Return path ingress detection and troubleshooting
• Home Certification testing to reduce repeat truck rolls
• Forward and reverse sweep for non-invasive network maintenance
