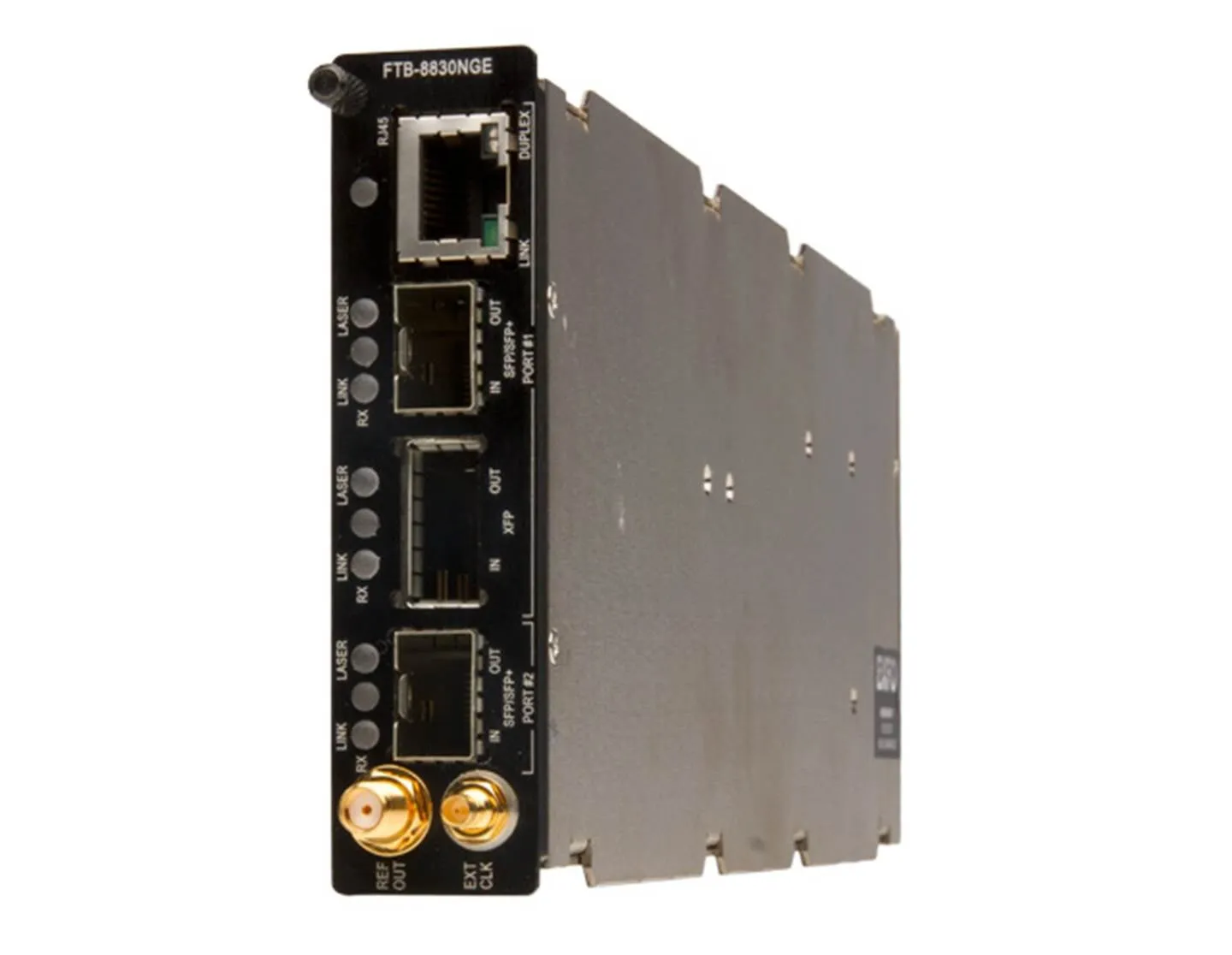

EXFO FTB-8830NGE Multiservice Test Module

Overview

The EXFO FTB-8830NGE is a comprehensive test suite for turn-up, circuit validation, and troubleshooting of multiservice networks. It supports Ethernet, SONET/SDH, OTN, Fibre Channel, and packet synchronization services up to 10 Gbit/s, with advanced test functionality addressing multiple technologies including CPRI and OBSAI. The module integrates optical tools and supports flexible deployment across lab and field environments.

Key Features

• Comprehensive testing for Ethernet, SONET/SDH, OTN, Fibre Channel, and packet synchronization services up to 10G
• Integrated CFP/CFP2/CFP4 and QSFP28 interfaces for next-generation 100G network testing
• SFP/SFP+ interface support for lower-rate signal testing
• 100G Ethernet through mode capability for in-line monitoring and bidirectional traffic analysis
• Dual-port Ethernet testing capability up to 100G
• CPRI layer-2 link validation for BBU or RRH from 1.2G to 10.1G
• eCPRI 10G/25G link validation for lab and field deployment
• Real-time high-resolution RF spectrum analysis over CPRI links
• Intelligent Pluggable Optics (iOptics) test application for transceiver validation
• EXFO TFv Test Function Virtualization with floating and time-based licensing
• Compatible with LTB-8 rackmount platform (up to 8 modules simultaneously) and FTB-2/4 Pro portable platforms
• EXFO Multilink web-based application for multi-user management and remote access

Applications

• Network circuit validation and service turn-up
• Ethernet and SONET/SDH service troubleshooting
• CPRI and eCPRI link validation for mobile backhaul
• RF spectrum monitoring over CPRI
• Optical transceiver validation and testing
