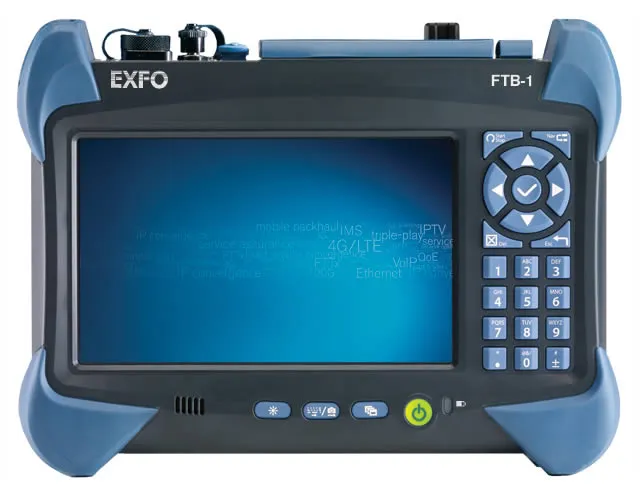

EXFO FTB-860GL Ethernet Tester
Request a quote
EXFO FTB-860GL is an Ethernet tester with 10/100/1000 electrical and optical, 10 Gbit/s LAN/WAN testing, and full Carrier Ethernet OAM capabilities.
Product details
| Model | FTB-860GL |
| Manufacturer | EXFO |
| Category | Telecommunications Testers |
| Availability | Made to order |
Description
Overview
The EXFO FTB-860GL is a multiservice Ethernet tester built on the FTB-1 handheld platform. It provides comprehensive testing for Ethernet, Fibre Channel, SONET/SDH, OTN, and packet synchronization services from 10 Mbit/s to 10 Gbit/s. The instrument features full EtherSAM service activation methodology based on ITU-T Y.1564 and RFC 6349 standards.
Key Features
- Ethernet testing from 10 Mbit/s to 10 Gbit/s with EtherSAM (ITU-T Y.1564) and RFC 2544 support
- OTN testing with forward error correction (FEC)
- Fibre Channel assessment via 1X, 2X, 4X, 8X and 10X interfaces
- SONET/SDH testing up to 10 Gbit/s
- DSn/PDH and ISDN PRI testing
- SyncE/1588 PTP packet synchronization testing
- BER testing with user-defined pass/fail thresholds
- RFC 6349 TCP throughput testing for SLA validation
- Carrier Ethernet OAM testing (Y.1731, G.8113.1, MEF, 802.1ag standards)
- Full line-rate packet capture and filtering from 10M to 10G
- Dual-port testing for simultaneous measurements
- 7-inch TFT touchscreen with hybrid keypad navigation
- Integrated Wi-Fi and Bluetooth connectivity
Applications
- Ethernet service turn-up and validation
- Carrier Ethernet network troubleshooting and OAM testing
- Fibre Channel network assessment
- SONET/SDH and OTN service testing
- VoIP and IP network testing
- Field service activation and network validation
Specifications
| Model (FTB-860GL) | Description |
