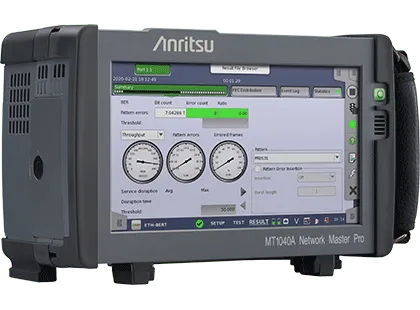

Anritsu MT1040A 400G Network Tester
Request a quote
Anritsu MT1040A is a portable network tester supporting speeds from 10M to 400G Ethernet, OTN/SDH/SONET, and mobile backhaul with 400G FEC evaluation.
Product details
| Model | MT1040A |
| Manufacturer | Anritsu |
| Category | Telecommunications Testers |
| Availability | Made to order |
Description
Overview
The Anritsu MT1040A Network Master Pro is a portable B5-size instrument for evaluating communication quality across networks operating at speeds from 10 Mbps to 400 Gbps. With built-in Forward Error Correction (FEC) analysis for 400G Ethernet, it enables comprehensive testing of optical modules, devices, and network performance across multiple protocols and interfaces.
Key Features
- Supports Ethernet 10M to 400G, OTN/SDH/SONET 2.5G to 100G, and Fibre Channel 1GFC to 16GFC
- Mobile backhaul protocols: eCPRI/RoE/CPRI/OBSAI
- Built-in FEC analysis for 400G Ethernet quality evaluation
- Large 9-inch color touch screen for intuitive operation
- SEEK function for automated on-site testing procedures
- Measurement automation tools for one-button test execution
- Remote-controlled long-term testing via VNC
- Wireless control over WLAN (optional, region dependent)
- Stable Linux OS-based test environment
- User measurement module retrofitting capability
- Optional 400G Dual-Port measurements
Applications
- Network installation and field testing
- Optical module and device evaluation
- Network performance monitoring and maintenance
- 400G Ethernet deployment and qualification
- Multi-protocol network commissioning
Specifications
| The full range of built-in versatile MT1040A functions make field testing easy | Intuitive operation using large 9-inch color touch panel 400G Dual Ports Measurements (Option) SEEK function supporting fast, automated, on-site installation and maintenance test procedures Remote-controlled, long-term continuity testing using VNC Wireless control over WLAN*1 Optical fiber end-face condition inspection using dedicated Fiberscope Stable Linux OS based test environment *2 User measurement module retrofitting |
