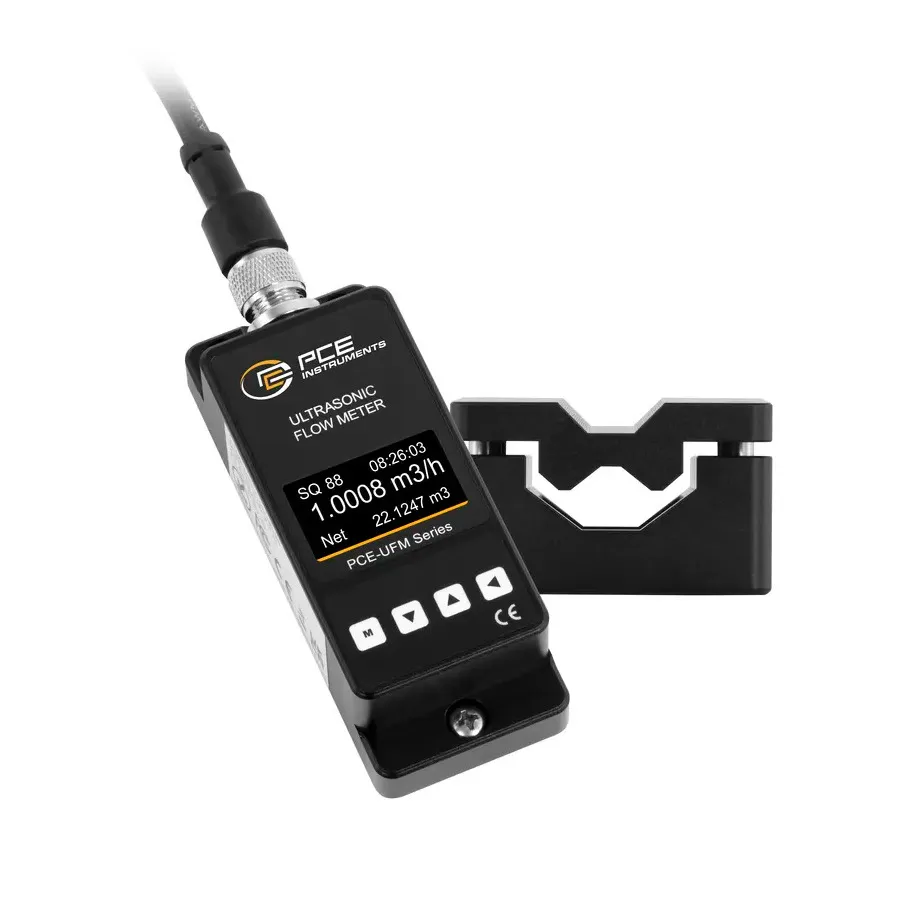

PCE Instruments PCE-UFM 8 Clamp-On Ultrasonic Flow Meter
Request a quote
Compact clamp-on ultrasonic flow meter for small pipes (DN8) with measurement range ±0.1–5 m/s, RS485 and 4–20 mA outputs.
Product details
| Model | PCE-UFM 8 |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-UFM 8 is a compact clamp-on ultrasonic flow meter designed for small pipes with a diameter of DN8 (1/4"). It uses ultrasonic transit time technology to measure flow rates from ±0.1 to ±5 m/s and is compatible with various pipe materials including steel, copper, aluminum, and plastics. The meter can be mounted quickly and easily without requiring pipe modifications.
Key Features
- Measurement range: ±0.1 to ±5 m/s
- Compact design suitable for DN8 (1/4") pipes
- Compatible with steel, copper, aluminum, and plastic pipes
- Display shows flow velocity, date, and time
- Displays volume flow rates for day, month, and year
- Analog output: 4–20 mA
- Digital output via RS485 interface
- Power supply range: 9–36 V DC
- Includes 2 m connection cable and coupling pads
Applications
- Heating systems
- Cooling water systems
- Industrial processes requiring flow monitoring and control
Included Accessories
- 2 m connection cable
- Coupling pads (4x)
- User manual
Specifications
| Accuracy | 2% |
| Display Type | OLED |
| IO Interface | RS485 |
| Power Source | 9 - 36 V DC |
| Resolution | 0.001 m/s |
| Series | UFM Series |
