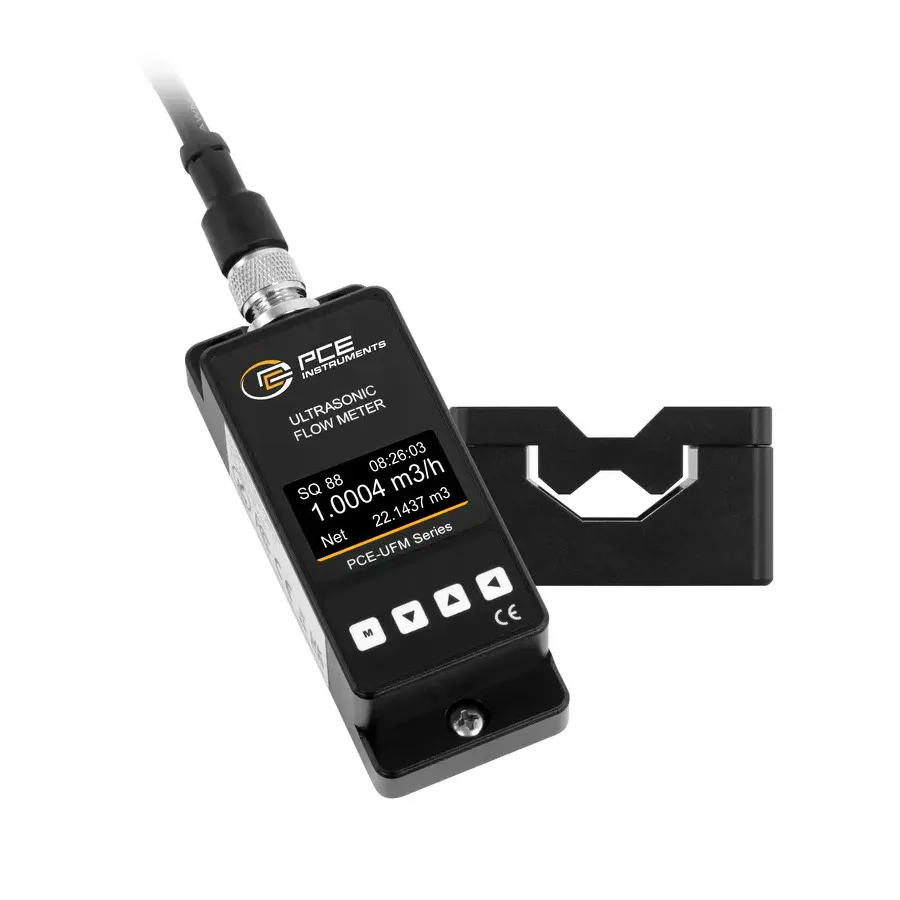

PCE Instruments PCE-UFM 4 Clamp-On Ultrasonic Flow Meter
Request a quote
PCE Instruments PCE-UFM 4 is a compact clamp-on ultrasonic flow meter for DN4 pipes with ±0.1–±5 m/s range, 4–20 mA analog output, and RS485 interface.
Product details
| Model | PCE-UFM 4 |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-UFM 4 is a compact clamp-on ultrasonic flow meter designed for small-diameter DN4 pipes. Using ultrasonic transit time technology, it measures flow rates from ±0.1 to ±5 m/s in both directions, compatible with various pipe materials including steel, copper, aluminum, and plastics. Its compact design enables quick and easy installation without interrupting production or accessing the liquid medium.
Key Features
- Measurement range: ±0.1 to ±5 m/s
- DN4 pipe size, suitable for steel, copper, aluminum, and plastic pipes
- Analog output: 4–20 mA
- RS485 digital interface
- Power supply: 9–36 V DC (versatile for various applications)
- Display shows flow velocity, date, and time
- Volume flow display for daily, monthly, and yearly accumulation
- Compact clamp-on design for quick installation
- Included 2 m connection cable and coupling pads
Applications
- Heating systems and temperature control
- Cooling water systems in industrial applications
- Process flow monitoring and control
- Water circulation systems
- Energy efficiency optimization
Included Accessories
- Ultrasonic flow meter unit
- 2 m connection cable
- Four coupling pads
- User manual
Specifications
| Accuracy | 2% |
| Display Type | OLED |
| IO Interface | RS485 |
| Power Source | 9 - 36 V DC |
| Resolution | 0.001 m/s |
| Series | UFM Series |
