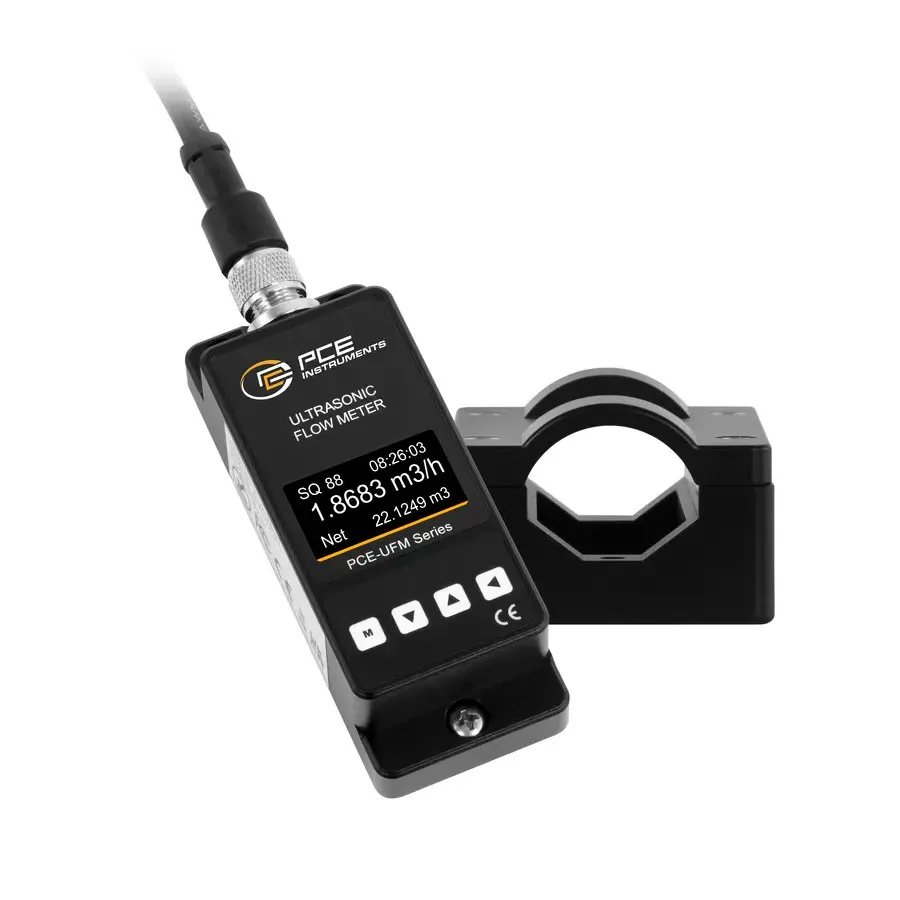

PCE Instruments PCE-UFM 25 Clamp-On Ultrasonic Flow Meter
Request a quote
PCE Instruments PCE-UFM 25 ultrasonic flow meter for DN25 pipes, measures ±0.1 to ±5 m/s, with RS485 and 4–20 mA analog output.
Product details
| Model | PCE-UFM 25 |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-UFM 25 is an ultrasonic clamp-on flow meter for DN25 (1 inch) pipes compatible with various materials including steel, copper, aluminum, and plastics. It measures flow rates from ±0.1 to ±5 m/s and provides both digital and analog output options for integration into industrial control systems.
Key Features
- Measurement range: ±0.1 to ±5 m/s
- RS485 digital interface and 4–20 mA analog output
- Power supply: 9 to 36 V DC for flexible integration
- Compact design for quick installation on existing pipes
- LCD display showing flow velocity, volume flow, date, and time
- Volume flow statistics for day, month, and year
- Compatible with various pipe materials and media
Applications
- Heating system monitoring
- Cooling water system control
- Industrial process flow monitoring
- Flow rate optimization and analysis
- Process automation and integration
Included Accessories
- 2 m connection cable
- 4 coupling pads
- User manual
Specifications
| Accuracy | 2% |
| Display Type | OLED |
| IO Interface | RS485 |
| Power Source | 9 - 36 V DC |
| Resolution | 0.001 m/s |
| Series | UFM Series |
