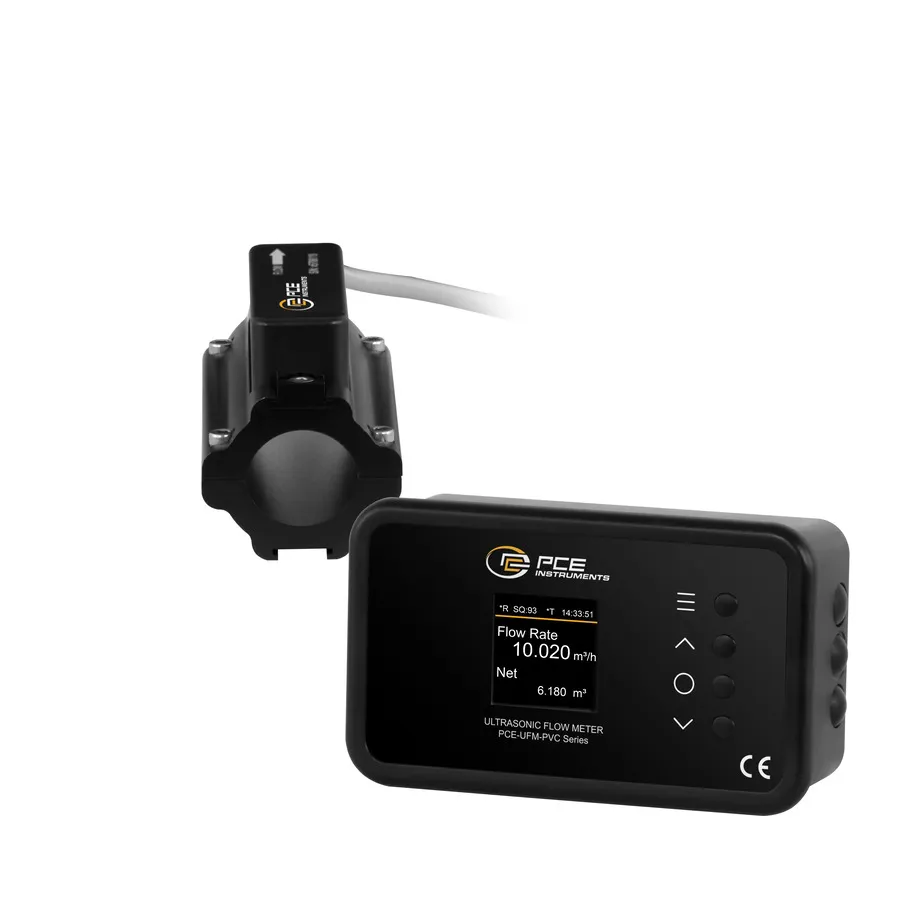

PCE Instruments PCE-UFM 20PVC Clamp-On Ultrasonic Flow Meter
Request a quote
PCE Instruments PCE-UFM 20PVC ultrasonic flow meter for PVC pipes DN20, measures 0.03–5 m/s, with Ethernet and cloud-based data logging.
Product details
| Model | PCE-UFM 20PVC |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-UFM 20PVC is an ultrasonic clamp-on flow meter designed for non-invasive measurement on PVC pipes with diameters between 21 and 29 mm. It uses the ultrasonic transit time method to determine flow velocity and volume without requiring contact with the measured medium or interrupting production processes.
Key Features
- Measurement range: 0.03 to 5 m/s
- Ethernet interface with Power over Ethernet (PoE) for power and communication
- 360° rotatable LCD display with signal quality and network status indicators
- Clamp-on installation without system shutdown or direct contact with liquid
- Cloud connectivity for remote data access and analysis from any device
- Switchable flow units: m³, l, or gal
- Reusable ultrasonic coupling pads included
Applications
- Water and wastewater management
- Drinking water treatment facilities
- Industrial cooling water systems
- Process flow monitoring and control
- Water consumption optimization
Included Accessories
- Sensor with Ethernet cable (9 m)
- PoE network cable (2 m)
- Ultrasonic contact gel
- Silicone seal (1 m)
- 4 coupling pads
- Allen key
- User manual
Specifications
| Accuracy | +/- 2% |
| Display Type | LCD |
| IO Interface | Ethernet, PoE, RJ45 |
| Power Source | PoE |
| Resolution | 0.01 m/s |
| Series | UFM Series |
