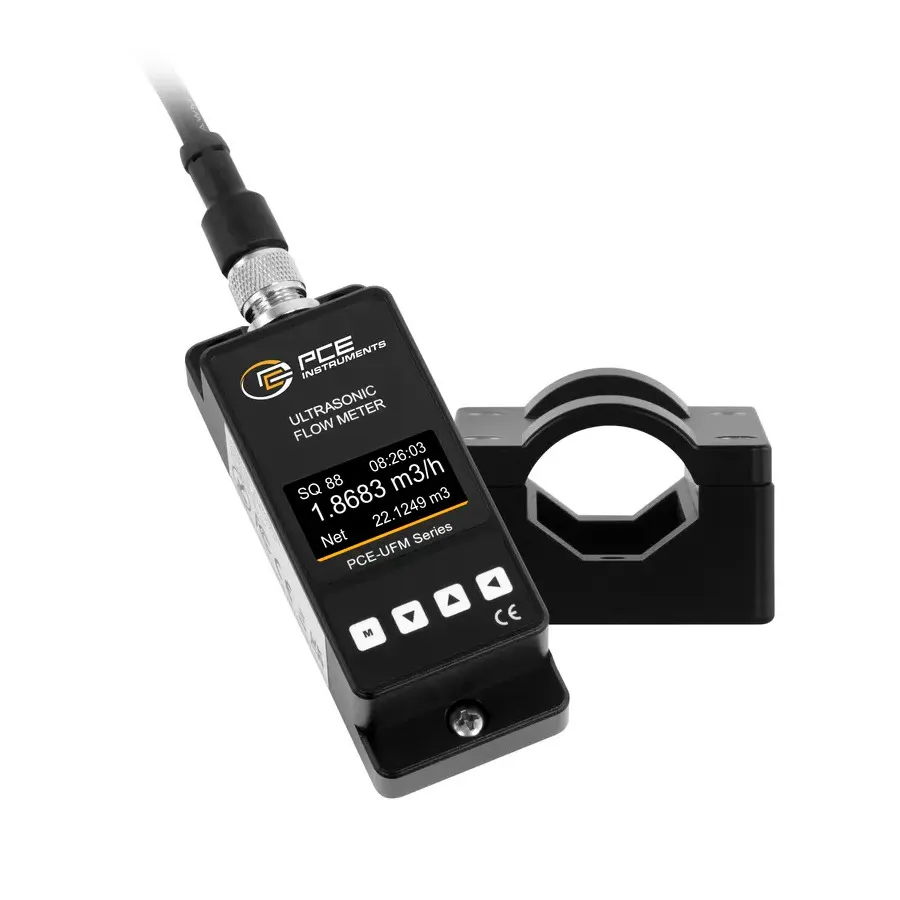

PCE Instruments PCE-UFM 20 Ultrasonic Flow Meter
Request a quote
PCE-UFM 20 clamp-on ultrasonic flow meter for DN20 pipes, measuring flow rates from ±0.1 to ±5 m/s with RS485 and 4–20 mA outputs.
Product details
| Model | PCE-UFM 20 |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-UFM 20 is a clamp-on ultrasonic flow meter designed for non-invasive flow measurement in pipes with a diameter of DN20 (3/4"). The device uses ultrasonic technology to measure flow rates ranging from ±0.1 m/s to ±5 m/s without requiring pipe modifications. Its compact design allows for quick and easy mounting on pipes made of steel, copper, aluminum, and various plastic materials.
Key Features
- Measurement range ±0.1 m/s to ±5 m/s for precise flow monitoring
- Clamp-on design — non-invasive installation without pipe modifications
- Compatible with steel, copper, aluminum, and plastic pipes
- DN20 (3/4") pipe size rating
- Analog output 4–20 mA for signal transmission
- RS485 digital interface for data communication
- Power supply range 9–36 V DC for versatile deployment
- Display shows flow velocity, volume flow (daily, monthly, yearly), date, and time
- Includes 2 m connection cable and coupling pads for optimal signal transmission
Applications
- Heating system flow monitoring and control
- Cooling water system management
- Industrial process flow monitoring
- HVAC system diagnostics
Included Accessories
- 2 m connection cable
- 4x coupling pads for signal transmission
- User manual
Specifications
| Accuracy | 2% |
| Display Type | OLED |
| IO Interface | RS485 |
| Power Source | 9 - 36 V DC |
| Resolution | 0.001 m/s |
| Series | UFM Series |
