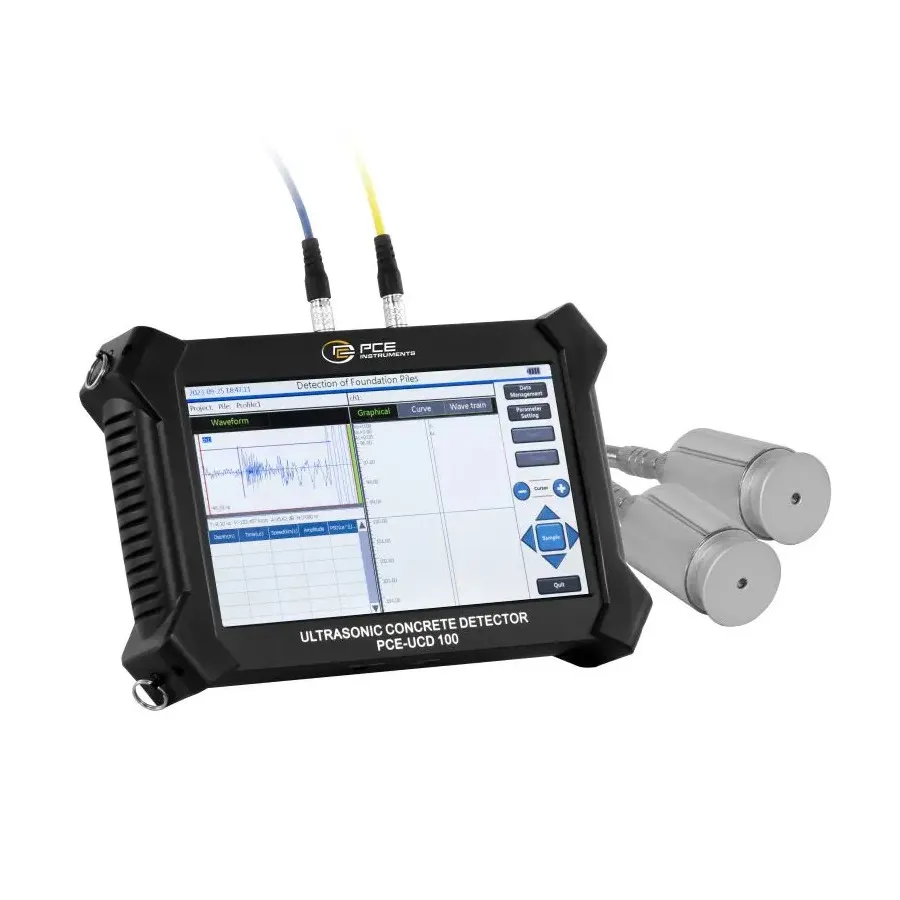

PCE Instruments PCE-UCD 100 Ultrasonic Concrete Detector

Overview

The PCE Instruments PCE-UCD 100 is a professional-grade ultrasonic concrete detector used for comprehensive quality control of concrete structures. It employs advanced ultrasonic technology with a bandwidth of 1 to 500 kHz to accurately assess concrete strength, detect structural defects such as voids and cracks, and measure crack widths. The device is equipped with a large 10.1-inch TFT touchscreen for easy navigation and includes an integrated camera for visual documentation of findings.

Key Features

• Measurement parameters: Concrete strength, void detection (size and depth), crack detection and width measurement
• Frequency bandwidth: 1–500 kHz
• Large 10.1-inch TFT touchscreen display with intuitive interface
• Integrated high-resolution camera for crack photography and measurement
• Internal storage: 8 GB for data and images
• Suitable for testing concrete piles, beams, and building components
• Robust carrying case for field transportation
• Software included for data analysis and reporting

Applications

• Concrete structure quality control and assessment
• Building inspection and certification
• Bridge and infrastructure evaluation
• Structural damage assessment after incidents
• Precast and ready-mix concrete testing

Included Accessories

• 2 × Ultrasonic sensors
• 1 × Integrated camera
• Ultrasonic contact gel
• 2 × Signal cables
• 1 × Camera cable
• Carrying strap
• USB stick with analysis software
• Measurement template
• Mains adapter with IEC cable
• Plastic carrying case
• User manual
