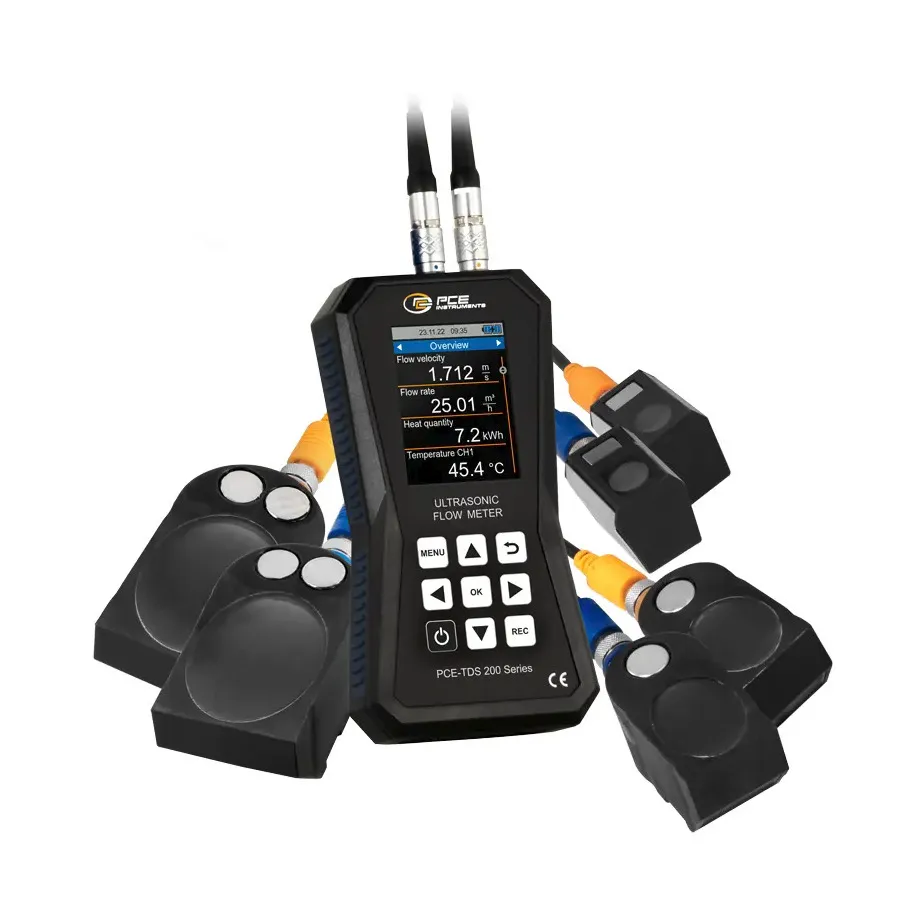

PCE Instruments PCE-TDS 200 SML Ultrasonic Flow Meter

Overview

The PCE Instruments PCE-TDS 200 SML is a portable ultrasonic flow meter designed for non-invasive measurement of flow rates in pipes. It provides a measuring range of ±32 m/s with high accuracy of ±1.5% full scale for pipe diameters DN ≥50 and ±3.5% for smaller pipes. The device features a 2.8-inch LCD display, USB-C connectivity, and 32 GB of internal memory capable of storing up to 10 million measuring points for comprehensive data logging and analysis.

Key Features

• Measuring range: ±32 m/s with reproducibility of ±0.5% of measured value
• Accuracy: ±1.5% full scale (DN ≥50) / ±3.5% (DN < 50)
• 2.8-inch LCD display for real-time data viewing and device configuration
• USB-C interface for rapid data transfer and connectivity
• Heat quantity measurement capability for thermal energy analysis
• Data memory: 10 million measuring points with individually adjustable alarm limits
• Optional software for advanced data analysis and visualization
• Available with optional ISO or DAkkS calibration certification

Applications

• HVAC system monitoring and energy efficiency analysis
• Water and wastewater treatment facilities
• Industrial process control and fluid management
• Building management systems and smart heating networks
• District heating and cooling networks
