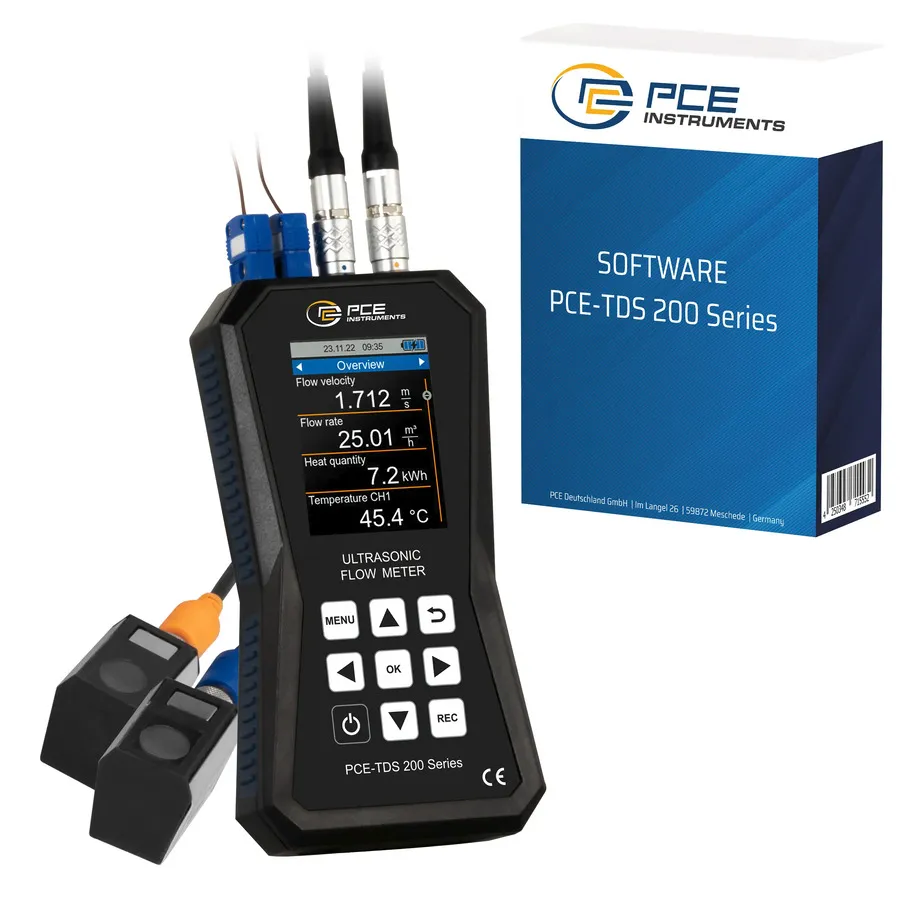

PCE Instruments PCE-TDS 200+ S-SW-KIT Ultrasonic Flow Meter
Request a quote
PCE Instruments PCE-TDS 200+ S-SW-KIT ultrasonic flow meter with ±32 m/s measuring range, ±1.5% accuracy (DN ≥50), heat measurement, and 10 million point memory.
Product details
| Model | PCE-TDS 200+ S-SW-KIT |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-TDS 200+ S-SW-KIT is an ultrasonic flow meter designed for non-invasive flow measurement in closed pipes. It features a measuring range of ±32 m/s with high accuracy for pipe diameters DN ≥50, making it suitable for industrial and HVAC applications requiring reliable flow and heat quantity measurements.
Key Features
- Measuring range ±32 m/s
- Accuracy ±1.5% f.s. for pipe diameter DN ≥50, ±3.5% f.s. for smaller diameters
- Reproducibility ±0.5% of measured value
- Heat quantity measurement capability
- Data memory for up to 10 million measuring points
- USB-C interface for data transfer
- Individually adjustable alarm limits
- Optional ISO or DAkkS calibration certificate available
Applications
- HVAC system monitoring and optimization
- Industrial flow and heat measurement
- Energy consumption analysis
- Building automation systems
Specifications
| Accuracy | 0.001 m/s |
| Display Type | LCD |
| IO Interface | USB-C |
| Power Source | LiPo battery 3.7 V, USB 5 VDC |
| Series | TDS Series |
