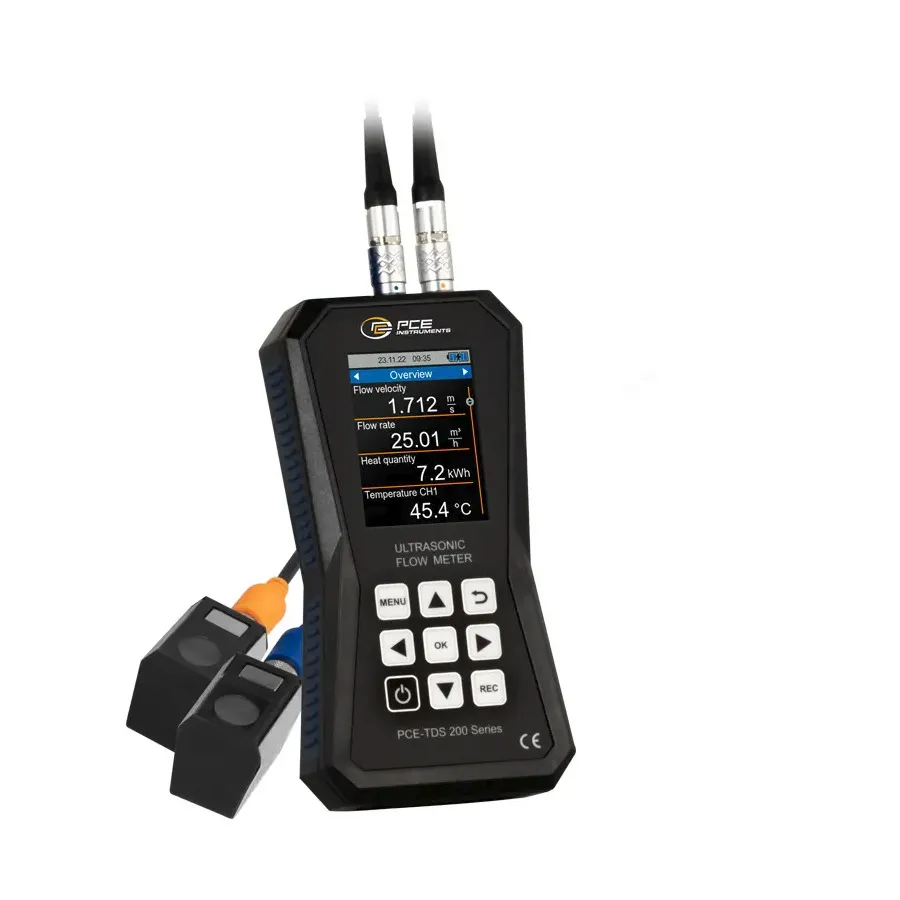

PCE Instruments PCE-TDS 200 S Ultrasonic Flow Meter
Request a quote
PCE Instruments PCE-TDS 200 S portable ultrasonic flow meter with ±32 m/s measuring range, USB-C data transfer, 32 GB memory, and optional ISO/DAkkS calibration certificates.
Product details
| Model | PCE-TDS 200 S |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-TDS 200 S is a portable ultrasonic flow meter for non-invasive measurement of fluid flow in pipes. It combines advanced ultrasonic technology with a user-friendly interface and extensive data logging for field measurements and system analysis.
Key Features
- Measuring range: ±32 m/s
- Accuracy: ±1.5% f.s. for pipe diameter DN ≥ 50 mm; ±3.5% f.s. for smaller diameters
- Reproducibility: ±0.5% of measured value
- 2.8" LCD display
- 32 GB data memory for 10 million measurement points
- USB-C interface for data transfer
- Heat quantity measurement function
- Individually adjustable alarm limits
- Optional analysis software
- Available with ISO or DAkkS calibration certificates
Applications
- HVAC system flow verification and balancing
- Industrial process flow monitoring
- Water and fluid management systems
- Energy audits and thermal analysis
- Plumbing and pipe system diagnostics
Specifications
| Accuracy | 0.001 m/s |
| Display Type | LCD |
| IO Interface | USB-C |
| Power Source | LiPo battery 3.7 V, USB 5 VDC |
| Series | TDS Series |
