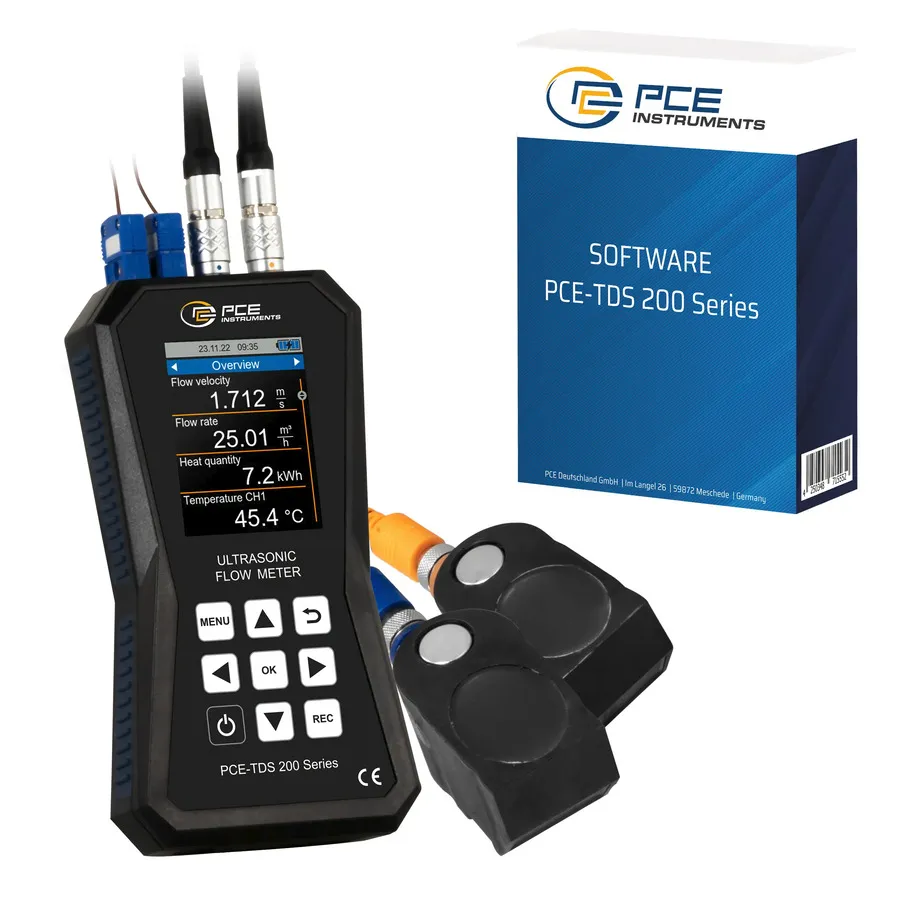

PCE Instruments PCE-TDS 200+ M-SW-KIT Ultrasonic Flow Meter
Request a quote
PCE Instruments PCE-TDS 200+ M-SW-KIT — ultrasonic flow meter with 0-32 m/s measurement range, 1.5% accuracy, USB-C connectivity, and 10 million-point data memory.
Product details
| Model | PCE-TDS 200+ M-SW-KIT |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-TDS 200+ M-SW-KIT is an ultrasonic flow meter designed for non-invasive flow measurement in pipes with diameters of 50 mm and above. This software kit variant includes analysis software for enhanced data processing and real-time monitoring of fluid flow and heat quantity.
Key Features
- Measuring range of ±32 m/s
- Accuracy of ±1.5% f.s. for DN ≥50 mm
- Reproducibility ±0.5% of measured value
- USB-C interface for convenient data transfer
- Heat quantity measurement capability
- Data memory for 10 million measuring points
- Individually adjustable alarm limits
- Included software for analysing measured values
- Optional ISO or DAkkS calibration certificate
Applications
- District heating and cooling system monitoring
- Industrial process flow measurement
- Chiller and boiler efficiency monitoring
- HVAC system diagnostics and troubleshooting
Specifications
| Accuracy | 0.001 m/s |
| Display Type | LCD |
| IO Interface | USB-C |
| Power Source | LiPo battery 3.7 V, USB 5 VDC |
| Series | TDS Series |
