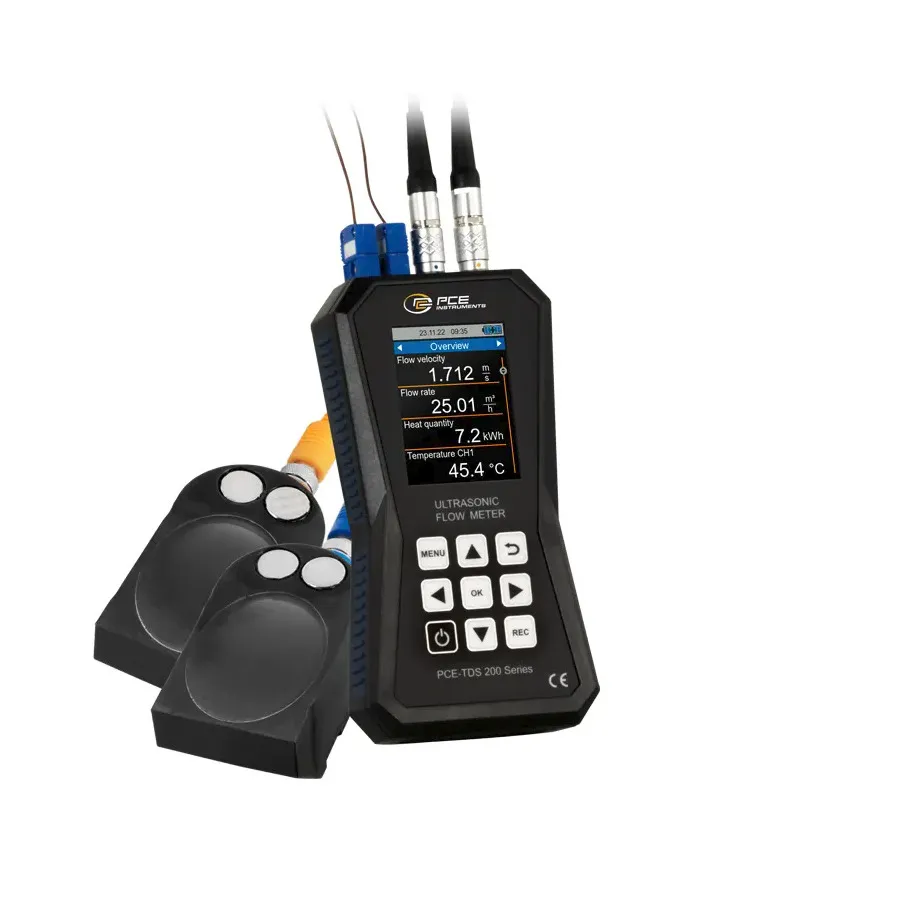

PCE Instruments PCE-TDS 200 L Ultrasonic Flow Meter
Request a quote
PCE Instruments PCE-TDS 200 L is an ultrasonic flow meter with ±32 m/s measuring range, ±0.5% reproducibility, and 10 million measuring point capacity.
Product details
| Model | PCE-TDS 200 L |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-TDS 200 L is an ultrasonic flow meter for non-invasive measurement of fluid flow in pipes. It offers a measuring range of ±32 m/s with reproducibility of ±0.5%, advanced data logging for up to 10 million measuring points, and optional heat quantity measurement.
Key Features
- Measuring range: ±32 m/s
- Accuracy: ±1.5% f.s. (DN ≥50), ±3.5% f.s. (smaller pipe diameters)
- Reproducibility: ±0.5% of measured value
- USB-C interface for data transfer
- Data memory: 10 million measuring points
- Heat quantity measurement capability
- Individually adjustable alarm limits
- Optional analysis software included
- Optional ISO or DAkkS calibration certificate
Specifications
| Accuracy | 0.001 m/s |
| Display Type | LCD |
| IO Interface | USB-C |
| Power Source | LiPo battery 3.7 V, USB 5 VDC |
| Series | TDS Series |
