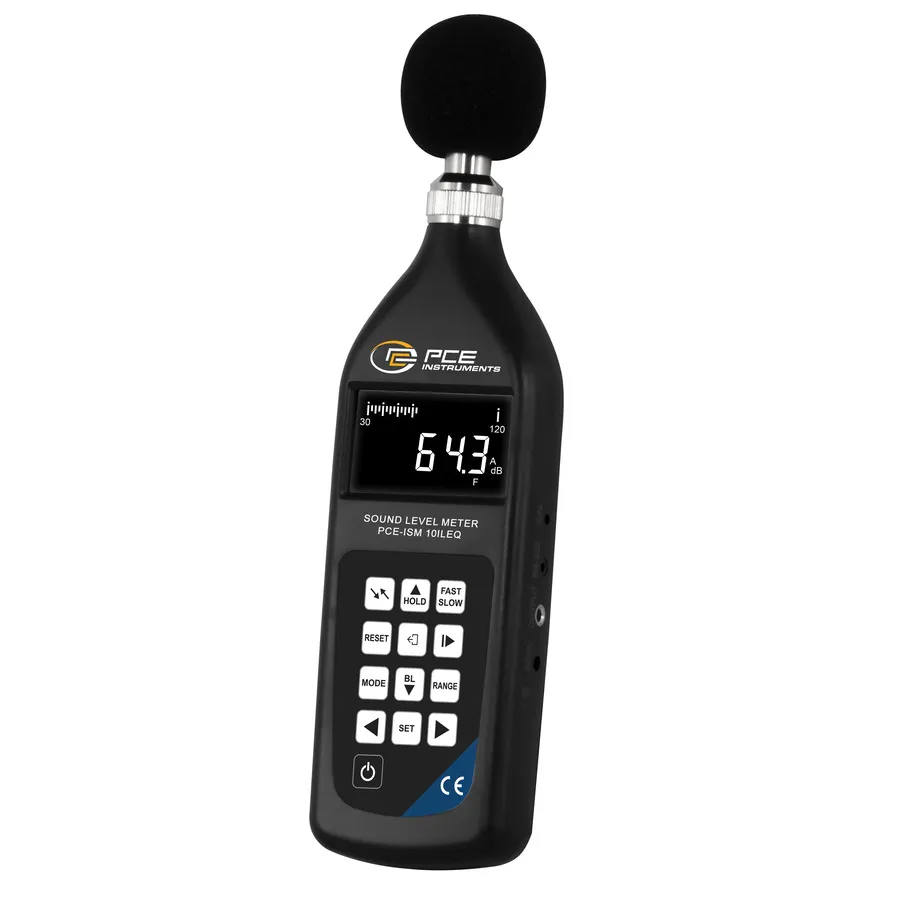

PCE Instruments PCE-ISM 10ILEQ Decibel Meter
Request a quote
PCE-ISM 10ILEQ decibel meter measures sound levels from 20–130 dB with HOLD, MAX, and LEQ functions, multiple frequency and time weightings, 800-point memory, and short response time.
Product details
| Model | PCE-ISM 10ILEQ |
| Manufacturer | PCE Instruments |
| Category | Sound Level Meters |
| Availability | Made to order |
Description
Overview
The PCE-ISM 10ILEQ decibel meter is specially designed to precisely detect and measure short, pulse-like noises such as explosions, blows, and bangs. It records sound levels within a range of 20 to 130 dB with three manual measurement ranges available. The device features an integrated 1/2-inch condenser microphone with short response time, enabling reliable registration of sudden sound pressure peaks.
Key Features
- Measurement range: 20 to 130 dB
- Measurement functions: HOLD, MAX, and LEQ for sound level visualization
- Time weighting: Fast, Slow, and Impulse (I)
- Frequency weighting: A, C, and Z
- Frequency response: 20 to 8000 Hz
- Internal memory: 800 data records
- Storage capability: Up to 6 days of automatic periodic measurements
- Integrated 1/2-inch condenser microphone
- AC signal output
- Battery and mains operation
- RS-232 interface for data transfer
Applications
- Noise control and industrial noise monitoring
- Peak sound level assessment
- Environmental and industrial compliance measurement
- Occupational health and safety monitoring
Included Accessories
- 4 x 1.5 V AAA batteries
- Carrying case
Specifications
| Series | ISM Series |
