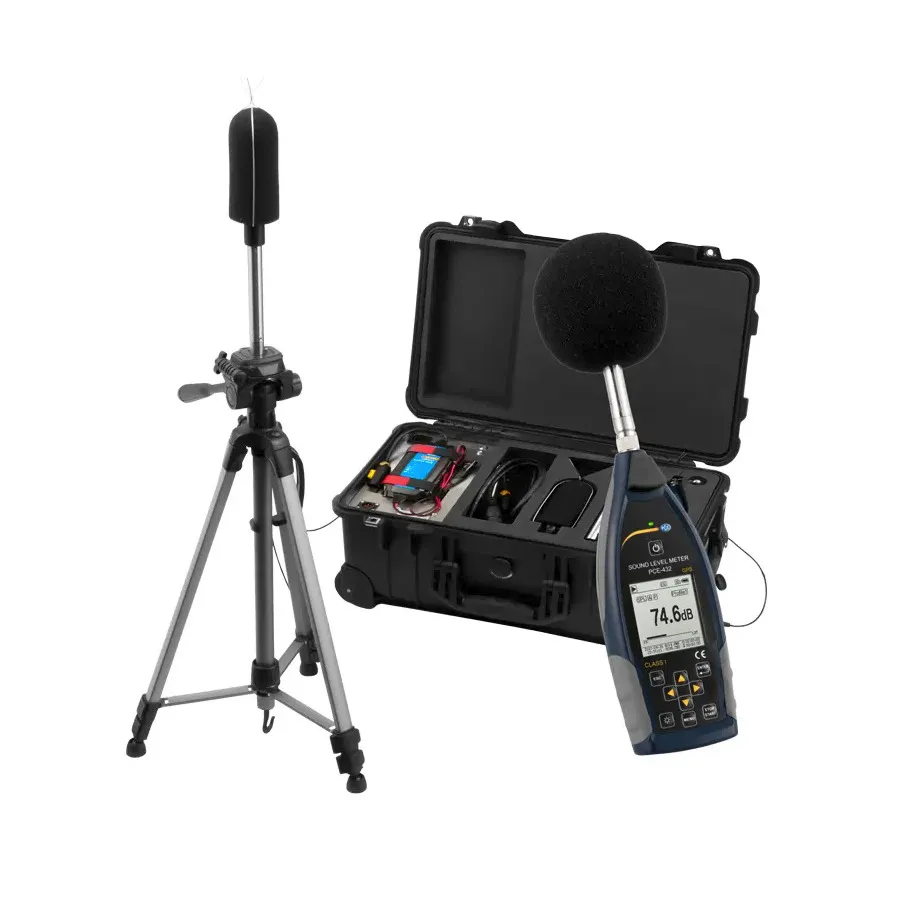

PCE Instruments PCE-432-EKIT Sound Level Meter Set

Overview

The PCE-432-EKIT is a Class 1 sound level meter designed for professional noise measurement and frequency analysis. Featuring an integrated GPS receiver, data logging on microSD card, and real-time graphical display, this meter is suitable for workplace noise compliance, environmental monitoring, and hearing protection assessment. The meter meets all applicable standards including EN/IEC 61672 and ANSI S1.4-1983.

Key Features

• Class 1 accuracy compliance with EN/IEC 61672, ANSI S1.4-1983, and ANSI S1.43-1997 standards
• 1/1 octave band filter (optional 1/3 octave band upgrade available)
• Frequency range: 3 Hz to 20 kHz with sound pressure range of 22–136 dB(A)
• Integrated GPS receiver to assign measurements to exact geographic positions
• Multiple frequency weightings: A, B, C, and Z
• Time weightings: Fast, Slow, Pulse, and Peak
• Data logging on microSD card with USB connectivity for PC analysis
• Real-time numerical and graphical LCD display with adjustable alarm
• Statistics function and sound profile graph display
• Low inherent noise with ICCP microphone (40 mV/Pa)

Applications

• Workplace noise measurement and compliance monitoring
• Environmental noise detection and assessment
• Hearing protector selection and efficacy testing
• Noise abatement planning and noise exposure estimation
• Short-term sound event recording via pulse function

Included Accessories

• 1/2" measurement microphone (Class 1)
• Wind noise suppression foam ball
• USB interface cable
• Power adapter
• Carrying case
• Outdoor Noise Level Meter Kit PCE-4xx-EKIT with waterproof PELI transport case
• Wind and rain protection for microphone
• Charger for internal batteries
• 2× 12V lead gel batteries
• Tripod
• 2m / 6ft 6" microphone cable
• User manual
• Free software download
