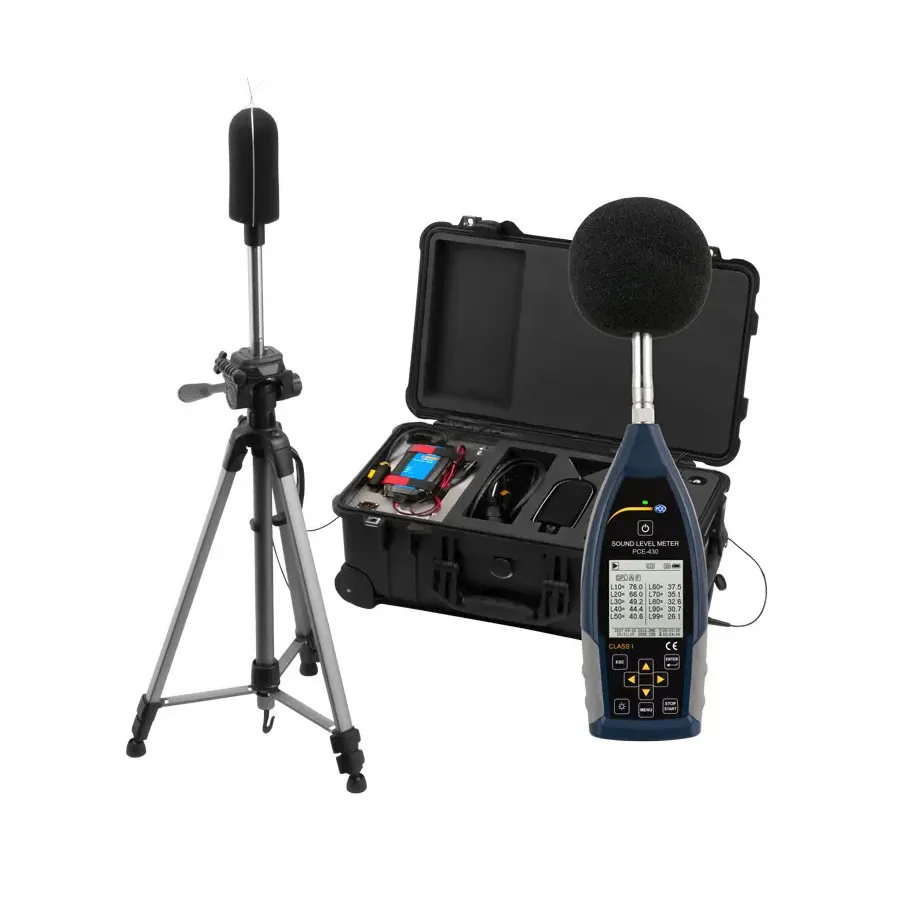

PCE Instruments PCE-430-EKIT Sound Level Meter

Overview

The PCE-430-EKIT is a Class 1 outdoor sound level meter that meets EN/IEC 61672 and ANSI standards for noise measurement and frequency analysis. It features a large illuminated display with real-time numerical and graphical sound pressure level display, integrated data logger with micro SD card storage, and dual connectivity via USB and RS232. The included outdoor kit provides comprehensive waterproof protection with PELI transport case, wind and rain protection, and batteries for extended field measurements lasting up to 10 days.

Key Features

• Class 1 accuracy certification
• 1/1 octave band filter (optional 1/3 octave band upgrade)
• A, B, C and Z frequency weighting
• Fast, Slow, Pulse and Peak time weighting
• Statistics function and sound profile graphing
• Three customizable measuring profiles
• Integrated data logger with micro SD card
• Large illuminated LCD display
• USB and RS232 connectivity
• Measuring range: 22–136 dB(A), frequency 3 Hz–20 kHz

Applications

• Workplace noise measurement and compliance monitoring
• Environmental noise detection and assessment
• Hearing protector selection and evaluation
• Noise abatement planning
• Road, aircraft, and train noise monitoring
• Event noise measurement

Included Accessories

• 1/2" measurement microphone (Class 1)
• Wind noise suppression (foam ball)
• USB interface cable
• Power adapter
• Carrying suitcase
• Waterproof PELI transport case with rollers
• Wind and rain protection for microphone
• Charger for internal batteries
• 2x 12V lead gel batteries
• Tripod
• 2m microphone cable
