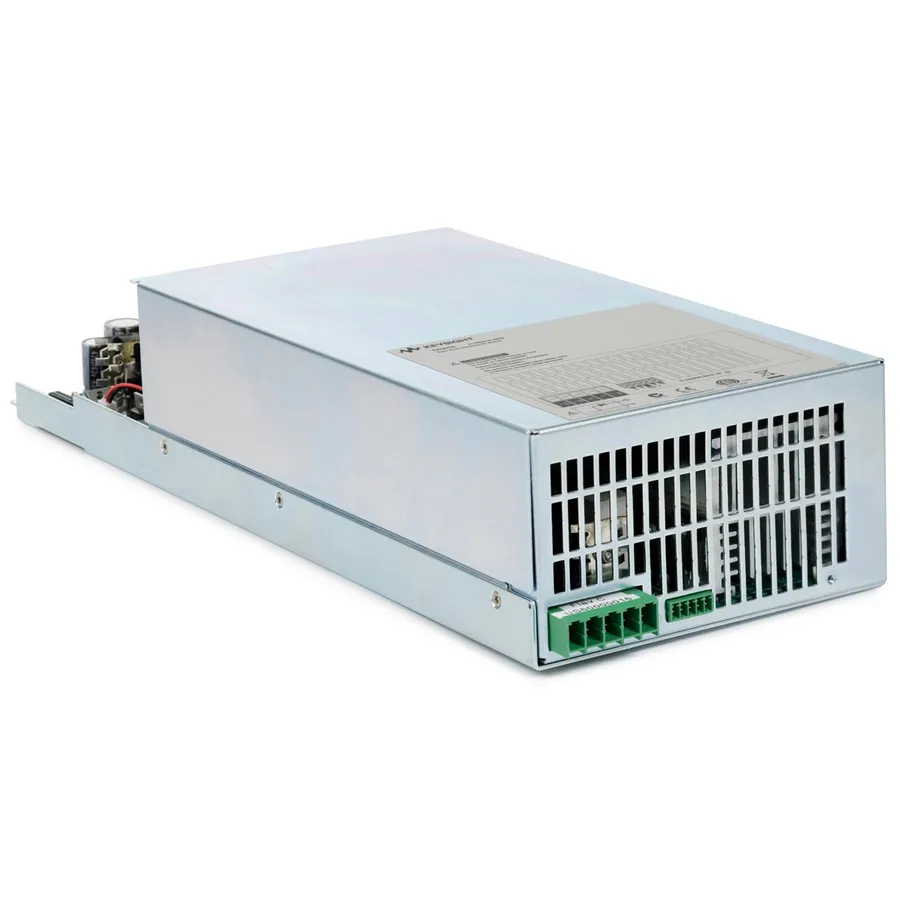

Keysight E4362A/J02 Solar Array Simulator Module
Request a quote
Keysight E4362A/J02 is a 600W solar array simulator with 120V, 5.4A output and low capacitance for precise I-V curve simulation under varied environmental conditions.
Product details
| Model | E4362A/J02 |
| Manufacturer | Keysight |
| Category | Solar Array Simulators |
| Availability | Made to order |
Description
Overview
Keysight's E4362A/J02 is a 600W DC power module that replicates the output behavior of solar arrays. Configured for 120V maximum output voltage and 5.4A maximum output current, this module functions as a current source with notably low output capacitance, enabling rapid changes in the I-V curve and precise simulation of diverse solar array outputs under various environmental conditions such as temperature variations, aging, eclipse, and spin dynamics.
Key Features
- Maximum Power Output: 600 W
- Maximum Output Voltage (Voc): 120 V
- Maximum Output Current (Isc): 5.4 A
- Low output capacitance for rapid I-V curve changes
- Multiple output modes: Simulator, Table, and Fixed
- Voltage ripple and noise (Simulator/Table Mode): 24 mV rms, 195 mV p-p
- Simultaneous voltage and current measurement capability
- Integrated protection against overvoltage, overcurrent, and overtemperature
Applications
- Solar array testing and validation
- Simulation of solar array behavior under different environmental conditions
- Power simulation for Device Under Test (DUT) in spacecraft and terrestrial solar applications
Specifications
| Power Rating | 600 W |
| Output Voltage | 120 V |
| Output Current | 5.4 A |
| Type | Module |
| Series | E4360 Series |
| Programmable | Yes |
