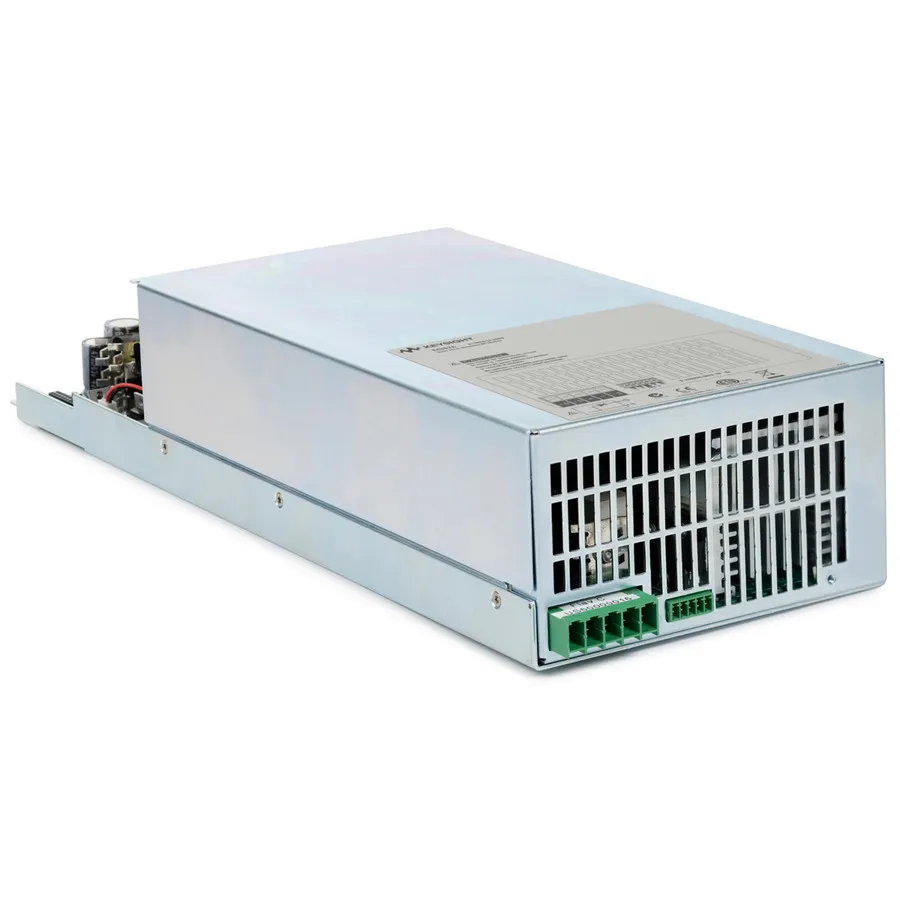

Keysight E4362A/J01 Solar Array Simulator Module
Request a quote
Keysight E4362A/J01 is a 600W solar array simulator module with 117V and 5.5A ratings for comprehensive solar array testing.
Product details
| Model | E4362A/J01 |
| Manufacturer | Keysight |
| Category | Solar Array Simulators |
| Availability | Made to order |
Description
Overview
The Keysight E4362A/J01 is a 600W solar array simulator module designed for precise solar array emulation and testing. Functioning primarily as a low-capacitance current source, it enables rapid I-V curve adjustments for accurate simulation of different solar arrays across varying environmental conditions such as temperature, age, eclipse, and spin.
Key Features
- Maximum power output: 600W
- Output voltage (Voc): 117V maximum
- Output current (Isc): 5.5A maximum
- Minimal output capacitance for accurate current source behavior
- Low ripple and noise characteristics (24 mV rms in Simulator/Table Mode)
- Compatible with E4360A Modular SAS Mainframe
- Hardware trigger for rapid multi-output measurements
- Data logging at 10 readings per second for voltage and current
- Built-in protection against overvoltage, overcurrent, and overtemperature conditions
Applications
- Solar array characterization and testing
- Simulation of solar panel behavior under various environmental conditions
- Device Under Test validation in solar power systems
Specifications
| Power Rating | 600 W |
| Output Voltage | 117 V |
| Output Current | 5.5 A |
| Type | Module |
| Series | E4360 Series |
| Programmable | Yes |
