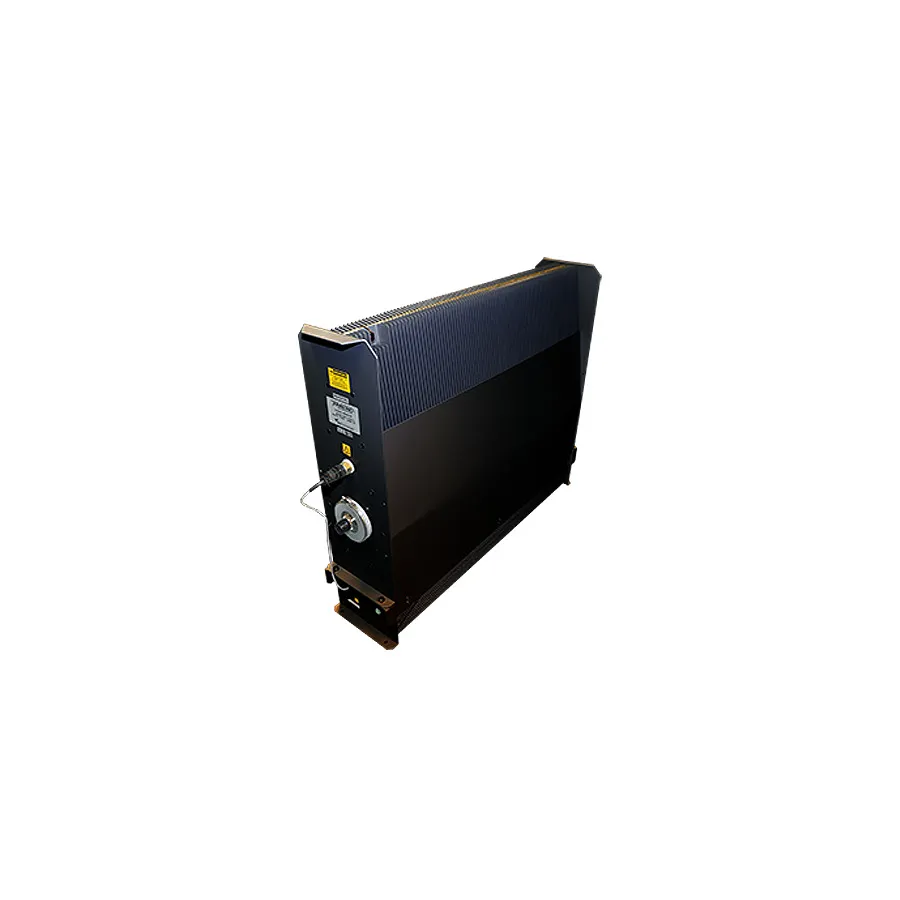

Bird 8941-230SC13 Oil-Dielectric RF Termination
Request a quote
Bird 8941-230SC13 is a 15 kW oil-dielectric RF termination load rated for DC to 28 MHz operation, designed for RF testing and measurement applications.
Product details
| Model | 8941-230SC13 |
| Manufacturer | Bird |
| Category | RF Terminators |
| Availability | Made to order |
Description
Overview
The Bird 8941-230SC13 is a 15 kW oil-dielectric RF termination load rated for 230V input and DC to 28 MHz operation. The oil-filled design provides superior thermal management and stable performance for accurate RF measurements and testing applications.
Key Features
- 15 kW power handling capacity
- Oil-dielectric design for superior thermal stability
- Frequency range: DC to 28 MHz
- Ultra-stable performance for accurate RF measurements
- 230V input configuration
Applications
- RF transmitter testing and tuning
- Power measurement and monitoring
- RF dummy load and test equipment
- System commissioning and maintenance
Specifications
| Connector Type | 7/16 DIN, Female |
| Frequency | 20 MHz |
| Series | 8941 Series |
| Dimensions | 43 x 9.5 x 33.4" |
| Finish | Black Powder Coat |
| Impedance | 50 Ω |
| Input Voltage | 230 VAC |
| Operating Temperature Range | 5-40°F |
| Power | 15 kW |
| Special Features | Oil dielectric and forced air convection |
