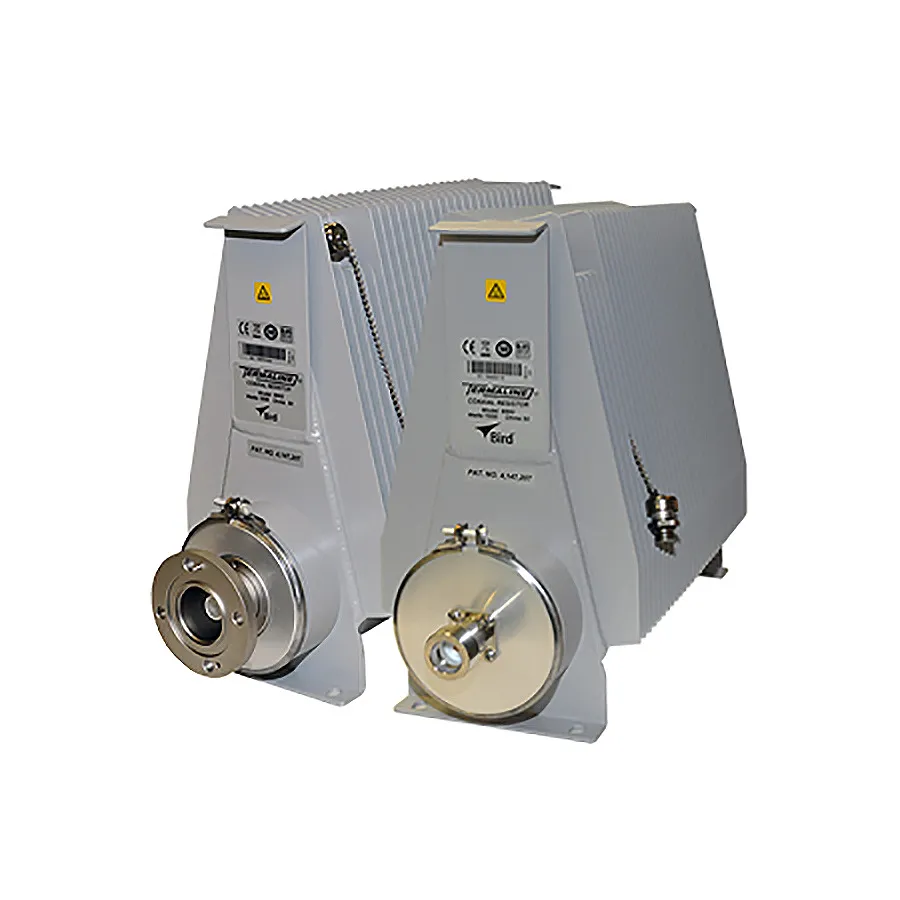

Bird 8860 Oil-Cooled RF Termination
Request a quote
Bird 8860 oil-cooled RF termination with 1500W continuous power handling, 50 ohm impedance, LC female connector, and DC-2 GHz frequency range.
Product details
| Model | 8860 |
| Manufacturer | Bird |
| Category | RF Terminators |
| Availability | Made to order |
Description
Overview
The Bird 8860 is a self-contained, high-power 50 ohm RF load designed for testing and adjusting transmitters under non-radiating conditions. It requires no outside power source or additional equipment and provides accurate, dependable, and practically non-reflective termination. The load consists of a cylindrical resistor immersed in oil coolant, individually selected for accuracy and housed in a tapered enclosure that provides linear impedance reduction along its length.
Key Features
- Oil coolant chamber surrounded by radiator fins for continuous high-power operation
- Front and rear fins form mounting flanges that can be used as supports
- Plug at the top relieves internal pressure from coolant expansion
- Simple and rugged design minimizes maintenance requirements
- Frequency range: DC to 2 GHz
- Power rating: 1500W average continuous
- Impedance: 50 ohms
- Connector: LC female
- VSWR: 1.0-1.1 (DC-1 GHz), 1.0-1.25 (1-2 GHz)
Applications
- Testing and adjusting transmitters
- Non-radiating load testing
- CW, AM, FM, SSB, and TV applications
Specifications
| Connector Type | LC(f) |
| Series | 8860 Series |
| Finish | Gray Powder Coat |
| Frequency Range | DC-2GHz |
| Impedance | 50 Ohms |
| Maximum Power | 1.5 kW |
