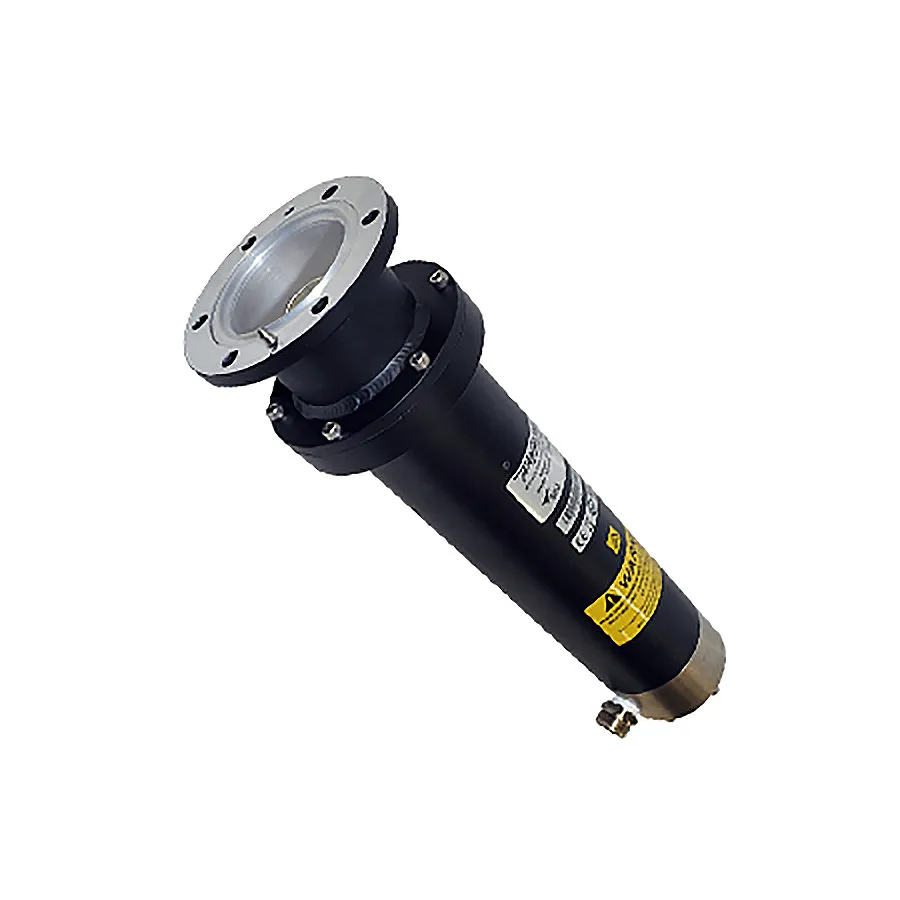

Bird 8775 Water-Cooled RF Termination
Request a quote
Bird 8775 is a broadband water-cooled RF termination with 50 kW continuous power rating, 1.10 VSWR, and frequency coverage from 1 kHz to 900 MHz.
Product details
| Model | 8775 |
| Manufacturer | Bird |
| Category | RF Terminators |
| Availability | Made to order |
Description
Overview
The Bird 8775 is a broadband, water-cooled RF termination designed for long-term RF dissipation in high-power transmitter and transmission line systems. Its compact design and low VSWR enable installation in minimal space while generating almost no ambient heat. The RF power is converted to heat in the hollow resistive film load resistor and directly absorbed by the water flowing through it.
Key Features
- Broadband frequency coverage from 1 kHz to 900 MHz
- Water-cooled design for efficient heat transfer away from installation area
- Compact size suitable for any mounting position
- Low VSWR for minimal reflections
- Non-radiating termination
- 3-1/8 inch EIA flanged connector
Applications
- High-power RF and microwave termination
- Transmitter and transmission line systems testing
- Long-term RF power dissipation with remote cooling
- Installations requiring minimal ambient heat generation
Specifications
| Series | 8770 Series |
| Finish | Black Powder Coat |
| Frequency Range | 1kHz-900MHz |
| Impedance | 50 Ohms |
| Maximum Power | 50 kW |
