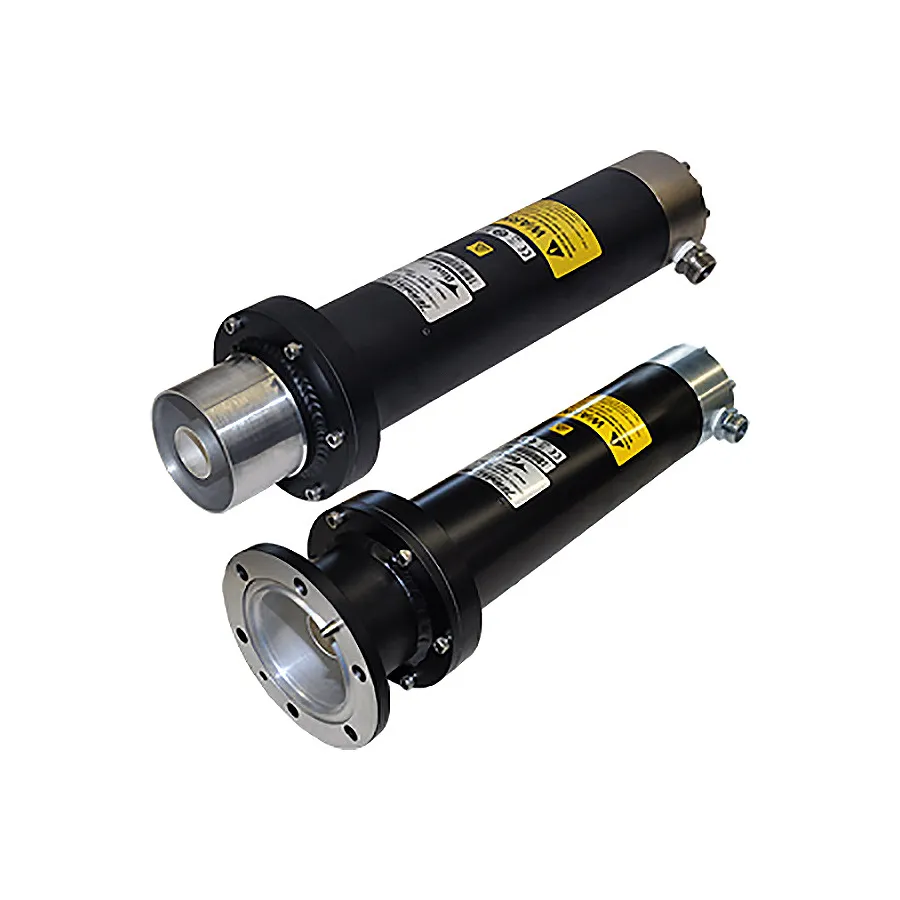

Bird 8755 Water-Cooled RF Termination
Request a quote
Bird 8755 is a water-cooled RF termination designed for high-power dissipation with 30 kW continuous rating, 50-ohm impedance, and 1 kHz to 900 MHz frequency range.
Product details
| Model | 8755 |
| Manufacturer | Bird |
| Category | RF Terminators |
| Availability | Made to order |
Description
Overview
The Bird 8755 is a water-cooled RF termination designed for high-power broadband RF dissipation in transmitter and transmission line systems. It converts RF power to heat in a hollow resistive film load resistor, with water flowing through it to efficiently transfer heat away from the RF system. The compact design allows installation in any position and requires only a source of potable water.
Key Features
- 30 kW continuous power rating
- Frequency range 1 kHz to 900 MHz
- 50-ohm impedance with 1.10 VSWR (max)
- 3-1/8 inch EIA Flanged connector
- Water flow rate 7–9 GPM depending on temperature
- Low VSWR and non-radiating design
- Compact, portable, installs in any position
Applications
- High-power RF transmitter load termination
- Transmission line system testing and measurements
- Long-term RF dissipation applications
- RF network testing and commissioning
Specifications
| Series | 8750 Series |
| Finish | Black Powder Coat |
| Frequency Range | 20kW-900 MHz |
| Impedance | 50 Ohms |
| Maximum Power | 30 kW |
