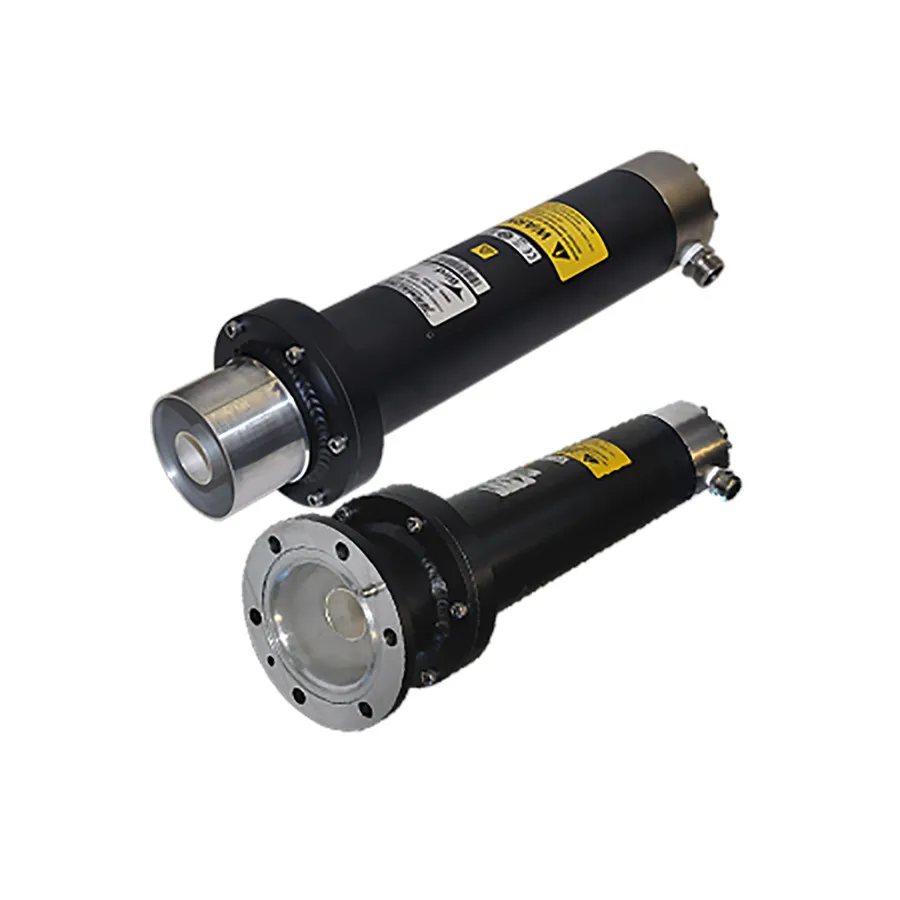

Bird 8745 Water-Cooled RF Termination
Request a quote
Bird 8745 is a water-cooled RF load for broadband 1 kHz–900 MHz applications with 20 kW continuous power dissipation.
Product details
| Model | 8745 |
| Manufacturer | Bird |
| Category | RF Terminators |
| Availability | Made to order |
Description
Overview
The Bird 8745 is a water-cooled RF load termination designed for high-power broadband applications. Part of the 8740 Series, this compact, low VSWR termination is engineered for use in high-power transmitter and transmission line systems. The water cooling directly absorbs RF power converted to heat in the resistive film load resistor, enabling efficient long-term dissipation with minimal ambient heat generation.
Key Features
- Frequency range: 1 kHz to 900 MHz
- Power rating: 20 kW continuous
- Connector: 3 1/8" EIA Flange
- Low VSWR broadband termination
- Water-cooled for efficient heat removal
- Non-radiating design
- Operating position: any (not position-dependent)
- Water flow requirement: up to 8 gallons (30.4 liters) per minute
Applications
- High-power transmitter dummy loads
- Transmission line terminations
- RF system testing and validation
- Long-term RF power dissipation where heat removal is critical
Specifications
| Series | 8740 Series |
