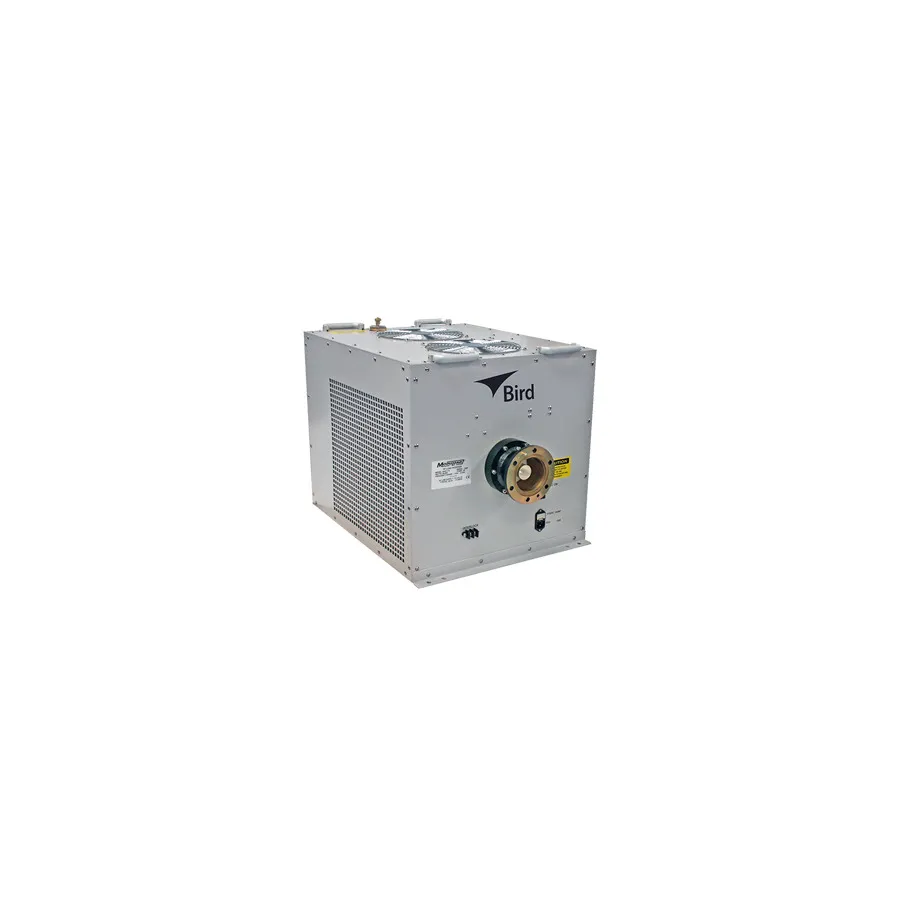

Bird 8645B230-6 RF Coaxial Termination
Request a quote
Bird 8645B230-6 forced-air cooled RF coaxial termination with 10 kW power handling at 60 Hz, interlock protection, and compact design.
Product details
| Model | 8645B230-6 |
| Manufacturer | Bird |
| Category | RF Terminators |
| Availability | Made to order |
Description
Overview
The Bird 8645B230-6 is a forced-air cooled RF coaxial termination designed for high-power RF applications. With a power handling rating of 10 kW and EIA flanged connector, this termination provides reliable load matching for RF transmitter systems operating at 60 Hz.
Key Features
- 10 kW power handling capacity
- Forced-air cooling for continuous operation at 60 Hz
- Interlock control circuit provides fail-safe protection of transmitter and load resistor
- Compact, low-profile design saves space in crowded transmitter sites
- 1 5/8" EIA flanged connector
Specifications
| Connector Type | 3 1/8" EIA, Flanged |
| Frequency | 900 MHz |
| Series | 8640B Series |
| Certifications | RoHS |
| Dimensions | 26 x 19 5/8 x 19 1/4" |
| Finish | Gray Powder Coat |
| Impedance | 50 Ω |
| Input Voltage | 230 VAC |
| Operating Temperature Range | 5-45°C |
| Power | 25 kW |
| Special Features | Forced Air-Cooled |
