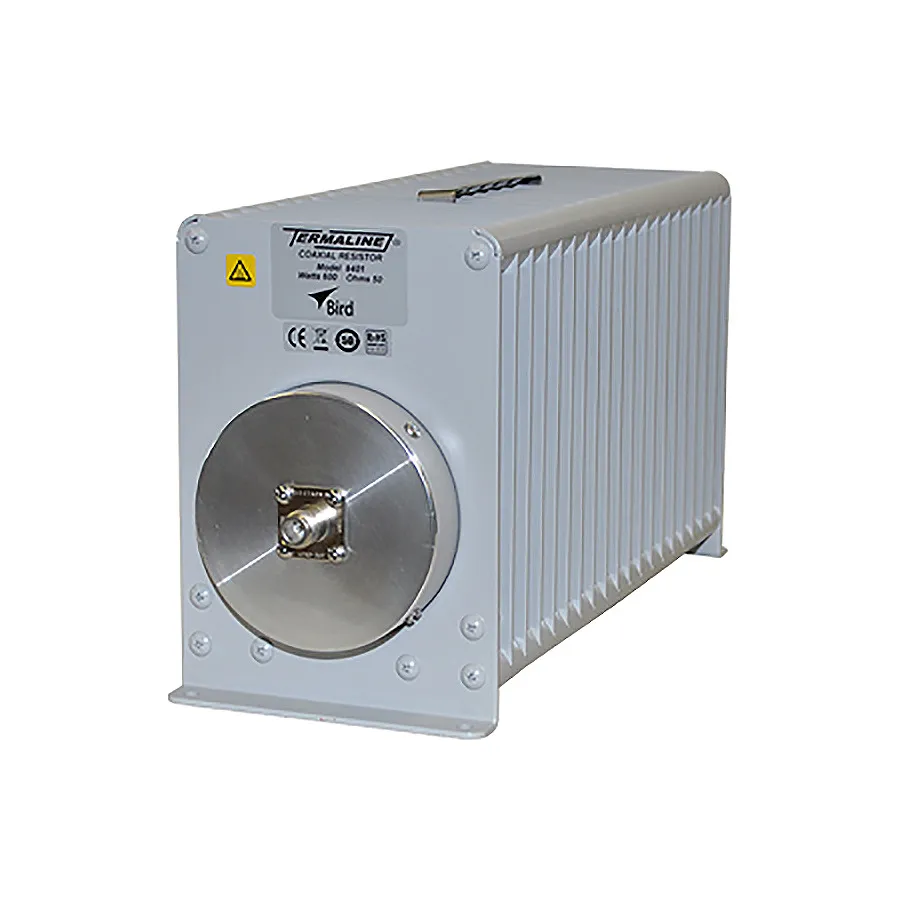

Bird 8401 Oil-Cooled RF Termination
Request a quote
Bird 8401 is a portable, oil-cooled 50-ohm RF termination for bench testing up to 600W continuous across DC to 3 GHz.
Product details
| Model | 8401 |
| Manufacturer | Bird |
| Category | RF Terminators |
| Availability | Made to order |
Description
Overview
The Bird 8401 is a portable, self-contained 50-ohm coaxial transmission line termination for bench RF testing and transmitter adjustment. It requires no external power source and provides non-reflective termination from DC to 3 GHz using a cylindrical film-type resistor immersed in dielectric coolant, housed in a special tapered coaxial structure that ensures uniform impedance matching.
Key Features
- Oil-assisted convection cooling for continuous operation up to 600W full rated power
- Frequency range: DC to 3 GHz with low VSWR (1.10 max DC–1 GHz, 1.20 max 1–2.8 GHz, 1.35 max 2.8–3 GHz)
- Quick Change (QC) connectors with N-type female connector to minimize adapters
- Low-profile housing with handle and rubber feet for portable field use
- 50-ohm impedance for standardized RF testing
Applications
- Base station RF transmitter testing and adjustment
- Bench testing for non-radiating load conditions
- Medium-power RF system validation up to 600W
Specifications
| Connector Type | N(f) |
| Finish | Gray Powder Coat |
| Frequency Range | DC-3GHz |
| Impedance | 50 Ohms |
| Maximum Power | 600 W |
