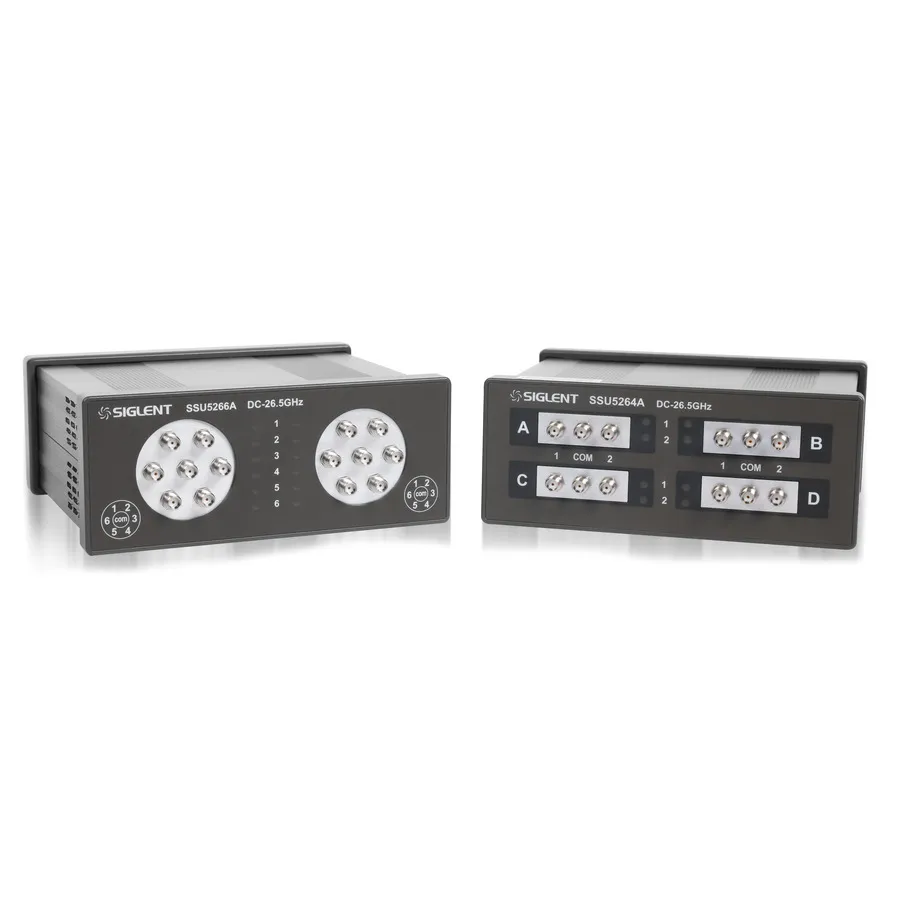

Siglent SSU5264A Four SPDT RF Mechanical Switch
Request a quote
Siglent SSU5264A four-channel SPDT RF mechanical switch for DC-26.5 GHz applications with SMA connectors and USB/SCPI control.
Product details
| Model | SSU5264A |
| Manufacturer | Siglent |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Siglent SSU5264A is a four-channel SPDT (single-pole double-throw) RF mechanical switch designed for multi-port testing in microwave and millimeter-wave systems. Operating from DC to 26.5 GHz with SMA female connectors, it features compact design, low insertion loss, excellent impedance matching, and fast switching times.
Key Features
- Four independent SPDT mechanical switches (each with one common terminal switched to one of two throw terminals)
- Frequency range: DC to 26.5 GHz
- SMA female RF connectors
- SCPI controllable via VISA and EasySSU software
- USB connectivity
- Compact design: 153 x 62.4 x 137.5 mm
- Low insertion loss and excellent impedance matching
Applications
- Multi-port RF and microwave test systems
- Automated test equipment and measurement systems
- Component characterization and validation
- RF network switch matrices
Specifications
| Frequency Range | 26.5 GHz |
| Connector Type | SMA(f) |
| Series | SSU5000A Series |
| Includes | RF Switch, User Manual, Power Adapter,USB Cable |
