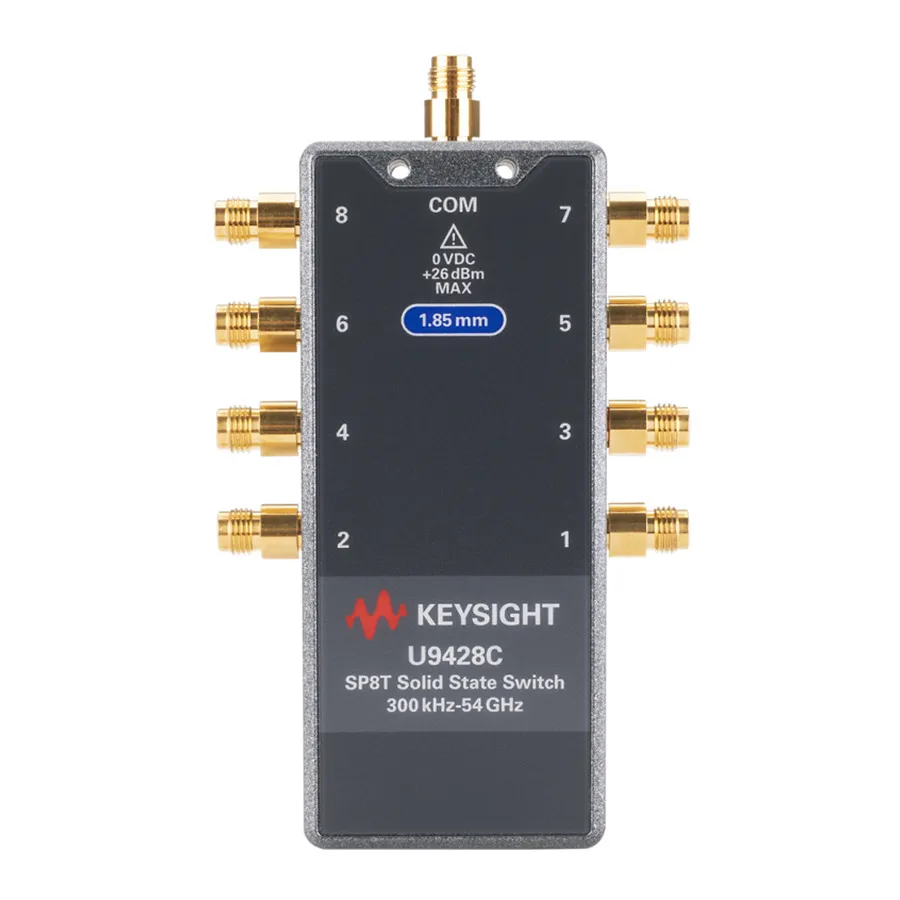

Keysight U9428C Solid State FET Switch (SP8T)
Request a quote
Keysight U9428C is an SP8T solid state FET switch operating from 300 kHz to 54 GHz with exceptional isolation (70 dB) and low video leakage for sensitive RF component testing.
Product details
| Model | U9428C/001/101 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight U9428C is a solid state FET switch available in SP8T configuration that operates across a broad frequency range from 300 kHz to 54 GHz. It is designed to increase system flexibility and simplicity while maintaining superior isolation performance and low video leakage, making it particularly suited for measuring sensitive devices and components such as mixers and amplifiers.
Key Features
- Broad operating frequency range from 300 kHz to 54 GHz
- Exceptionally high isolation up to 70 dB across broad frequency range
- Low video leakage less than 270 mVpp ensures safe testing of sensitive components
- Fast switching speed in microseconds
- Multiple connector options: 3.5 mm (26.5 GHz), 2.4 mm (50 GHz), 1.85 mm (54 GHz)
Applications
- Testing and measurement of sensitive RF components
- Mixer and amplifier characterization
- Multi-port RF system testing
Specifications
| Frequency Range | 300 kHz to 54 GHz |
| Function | SP8T |
| Connector Type | 1.85 mm |
| Series | U942xA/B/C Series |
| Connectivity | Solder Wire |
