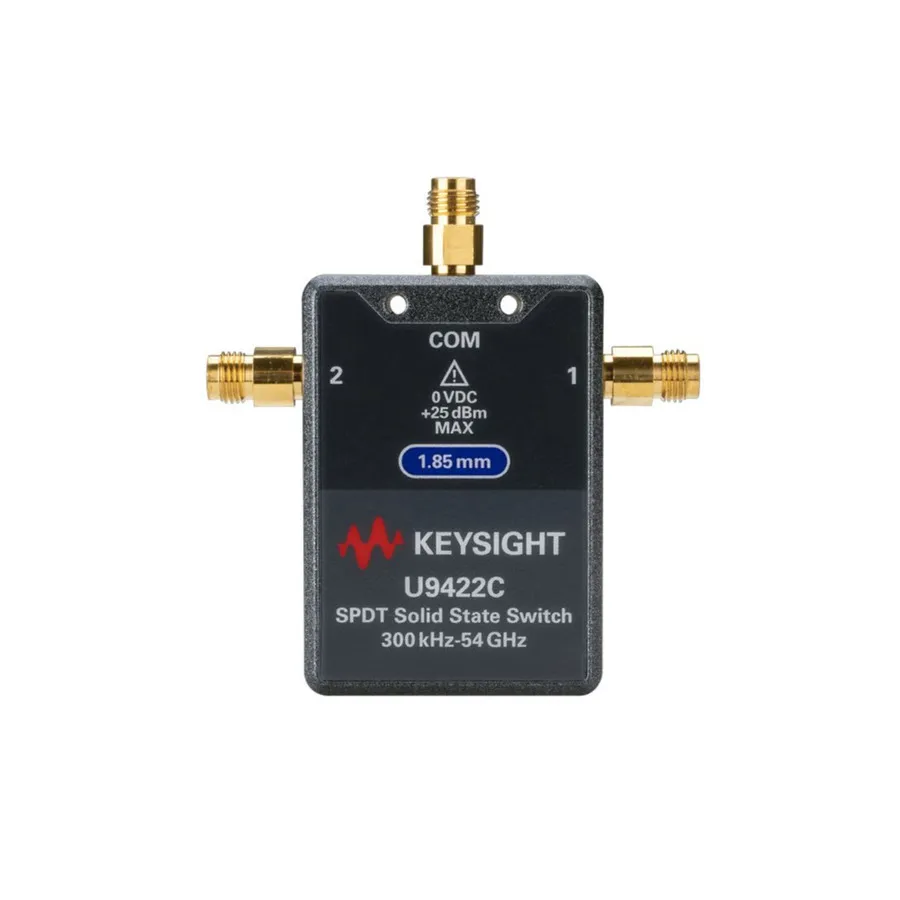

Keysight U9422C/001/101 SPDT Solid State FET Switch
Keysight U9422C SPDT solid state FET switch with 300 kHz-54 GHz frequency range, 100 dB isolation at 9 GHz, and low video leakage for sensitive component testing.
Product details
| Model | U9422C/001/101 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight U9422C is a solid state FET switch offering SPDT (Single Pole Double Throw) configuration across a broad operating frequency range of 300 kHz to 54 GHz. It provides superior performance in terms of isolation and video leakage, making it particularly suited for measuring sensitive devices and components such as mixers and amplifiers.
High video leakage can degrade measurement accuracy and potentially damage sensitive components. The U9422C offers high isolation performance (100 dB at 9 GHz, 70 dB up to 54 GHz) and low video leakage (less than 270 mVpp), ensuring safe testing of sensitive components.
Key Features
- Broad operating frequency range from 300 kHz to 54 GHz
- High isolation performance: 100 dB at 9 GHz, 70 dB up to 54 GHz
- Low video leakage: less than 270 mVpp
- Fast switching speed in microseconds
- 1.85 mm connector for 54 GHz operation
Applications
- Measurement of sensitive RF components and devices
- System flexibility and multiport configuration capability
- Testing of mixers and amplifiers
Included Accessories
- 3-pin connector to bare wire cable, 85 mm
Specifications
| Frequency Range | 300 kHz to 54 GHz |
| Function | SPDT |
| Connector Type | 1.85 mm |
| Series | U942xA/B/C Series |
| Connectivity | Solder Wire |
