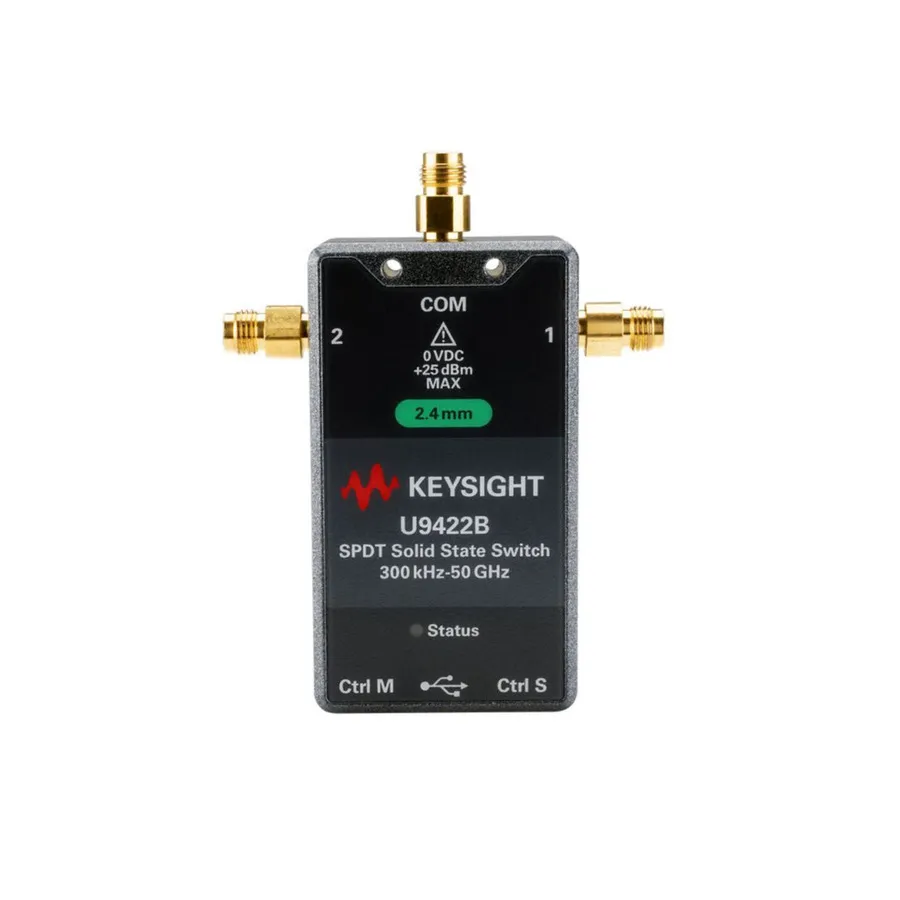

Keysight U9422B Solid State FET Switch, 300 kHz-50 GHz
Request a quote
Keysight U9422B solid state FET SPDT switch, 300 kHz-50 GHz, with exceptional isolation and low video leakage (<270 mVpp) for precise testing of high-frequency RF components.
Product details
| Model | U9422B/001/101 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight U9422B is a solid state FET SPDT (single-pole, double-throw) switch extending to 50 GHz, enabling broadband RF and microwave measurements from 300 kHz to 50 GHz. It delivers exceptional isolation performance and extremely low video leakage, making it ideally suited for precise characterization of sensitive high-frequency RF components. The switch offers flexible connectivity with solder terminal interface and fast microsecond-level switching speeds.
Key Features
- Frequency range: 300 kHz to 50 GHz
- SPDT configuration for flexible signal routing
- Port-to-port isolation: 100 dB at 9 GHz; 70 dB to 50 GHz
- Video leakage: less than 270 mVpp (prevents damage to sensitive components)
- Fast switching speed in microseconds
- 2.4 mm connectors for 50 GHz operation
- Solder terminal option for direct integration
Applications
- High-frequency measurement of sensitive RF components including mixers and amplifiers
- Millimeter-wave test and measurement systems
- Laboratory and production RF testing to 50 GHz
- Multi-channel measurement configurations
Included Accessories
- 3-pin connector to bare wire cable, 85 mm
Specifications
| Frequency Range | 300 kHz to 50 GHz |
| Function | SPDT |
| Connector Type | 2.4 mm |
| Series | U942xA/B/C Series |
| Connectivity | Solder Wire |
