Keysight U9422A Solid State FET Switch, 300 kHz-26.5 GHz
Request a quote
Keysight U9422A solid state FET SPDT switch, 300 kHz-26.5 GHz, with 100 dB isolation at 9 GHz and low video leakage (<270 mVpp) for precise testing of sensitive RF components.
Product details
| Model | U9422A/001/101 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview

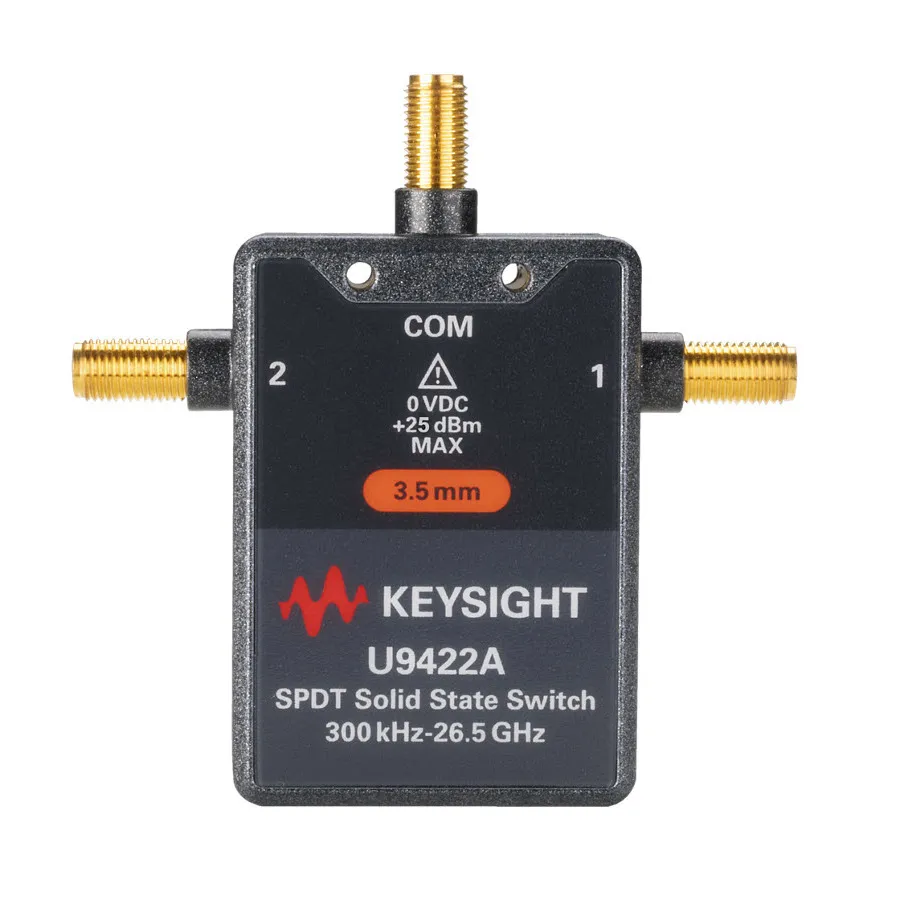

The Keysight U9422A is a solid state FET SPDT (single-pole, double-throw) switch designed for broadband RF and microwave applications spanning 300 kHz to 26.5 GHz. It delivers exceptional isolation performance and extremely low video leakage, making it ideally suited for precise measurement and characterization of sensitive RF components. The switch offers flexible connectivity with solder terminal interface and fast microsecond-level switching speeds.
Key Features
- Frequency range: 300 kHz to 26.5 GHz
- SPDT configuration for flexible signal routing
- Port-to-port isolation: 100 dB at 9 GHz; 70 dB to 26.5 GHz
- Video leakage: less than 270 mVpp (prevents damage to sensitive components)
- Fast switching speed in microseconds
- 3.5 mm connectors for 26.5 GHz operation
- Solder terminal option for direct integration
Applications
- Measurement of sensitive RF components including mixers and amplifiers
- Test and measurement system integration
- Laboratory and production RF testing
- Multi-channel measurement configurations
Included Accessories
- 3-pin connector to bare wire cable, 85 mm
Specifications
| Frequency Range | 300 kHz to 26.5 GHz |
| Function | SPDT |
| Connector Type | 3.5 mm |
| Series | U942xA/B/C Series |
| Connectivity | Solder Wire |
