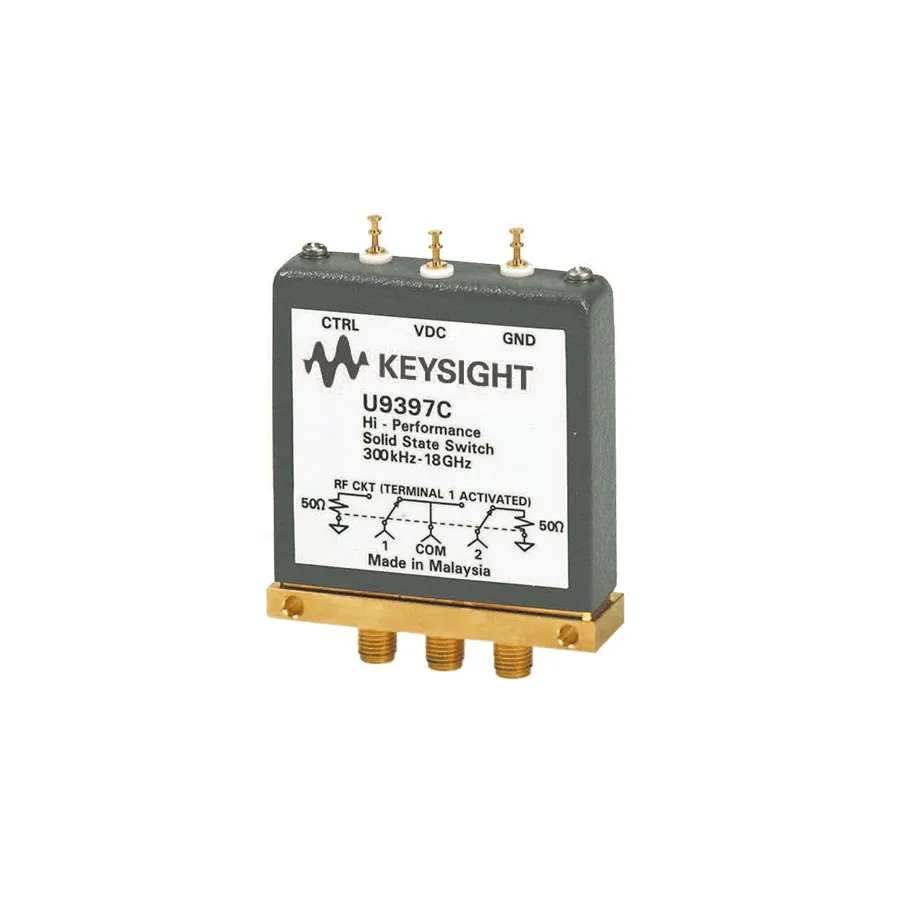

Keysight U9397C SPDT Solid State Switch
Request a quote
Keysight U9397C is a solid state SPDT switch covering 300 kHz to 18 GHz with 90 dB isolation, <5 dB insertion loss, and 500 µs settling time.
Product details
| Model | U9397C |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight U9397C is a solid state FET SPDT switch engineered for extended frequency coverage up to 18 GHz. It delivers robust performance in high-frequency RF and microwave test systems, supporting instrumentation, communications, radar, and other applications requiring fast, reliable signal switching at microwave frequencies.
Key Features
- Extended frequency range from 300 kHz to 18 GHz
- High port-to-port isolation above 90 dB to minimize cross-talk
- Low insertion loss of less than 5.0 dB
- Integrated TTL/CMOS driver eliminates need for external circuitry
- Single DC bias voltage operation for simplified biasing
- Fast settling time of approximately 500 µs for high-speed signal routing
- Low video leakage of less than 10 mVpp
Applications
- RF and microwave instrumentation systems
- Communications test equipment
- Radar and sensor systems
- Microwave research and development
- High-frequency signal routing applications
Specifications
