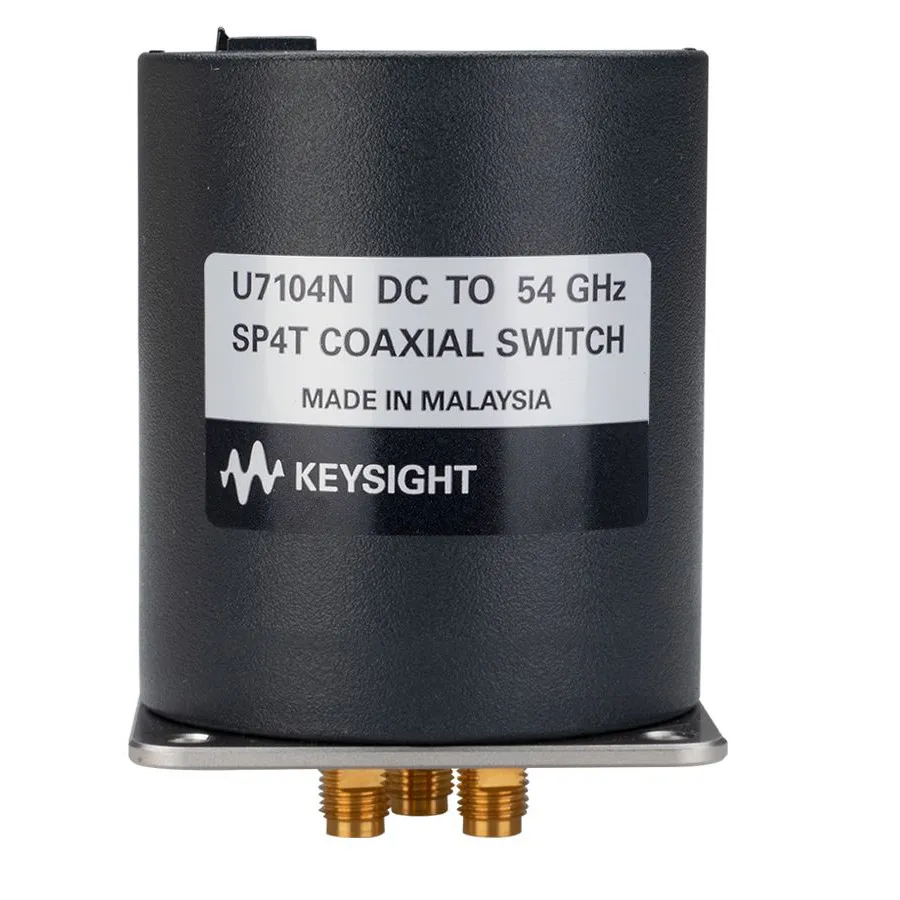

Keysight U7104N/200 Electromechanical Switch
Request a quote
Keysight U7104N/200 is a DC to 54 GHz SP4T electromechanical switch featuring magnetic latching, terminated ports, and superior RF isolation for automated test systems.
Product details
| Model | U7104N/200 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight U7104N/200 is an electromechanical switch designed for high-frequency RF testing and measurement. It provides DC to 54 GHz operation with SP4T (single-pole, four-throw) configuration, making it ideal for automated test systems requiring multi-port switching and signal routing.
Key Features
- SP4T configuration with magnetic latching
- Frequency range: DC to 54 GHz
- Terminated ports for superior RF isolation and VSWR performance
- Opto-electronic indicator and current interrupts
- TTL/5V CMOS compatible (optional)
- 24 VDC operation with 16-PIN DIP connector
Applications
- Automated test and measurement systems
- Signal monitoring and routing
- Multi-DUT (Device Under Test) testing
- Multi-channel DUT testing
Included Accessories
- 24-inch ribbon cable with bare wire connections
- 16-PIN DIP DC connector
Specifications
