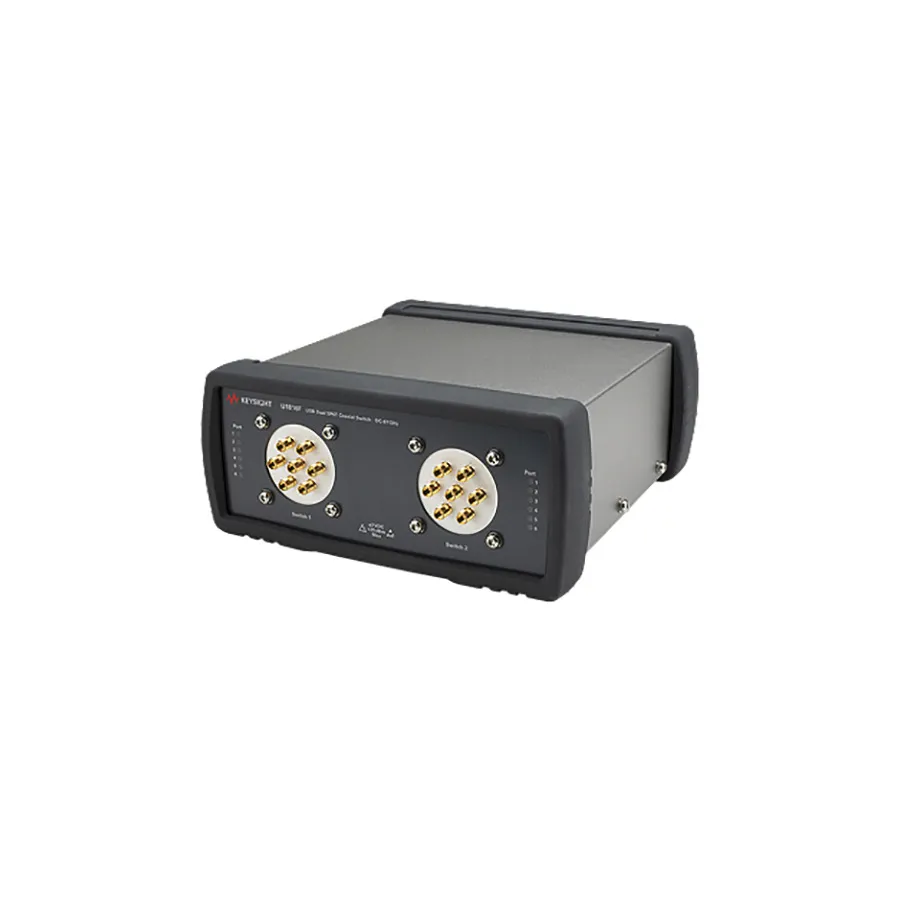

Keysight U1816F USB Coaxial Switch

Overview

The Keysight U1816F is a DC to 67 GHz USB-driven switch matrix consisting of two single-pole-six-throw (SP6T) switches. Its extended frequency range supports advanced RF and microwave applications. The matrix enables switching of multiple signal paths without physically changing connections, allowing multiple tests with the same setup and eliminating frequent manual reconnections. Excellent isolation and low VSWR ensure signal integrity across the full frequency range.

Key Features

• Extended frequency range: DC to 67 GHz
• Dual SP6T switching configuration
• USB interface for simple control and integration
• Excellent isolation minimizing crosstalk between channels
• Low VSWR across the full frequency range
• Extends test port count for multi-DUT and multiport device measurement
• Automated switching without physical reconnections

Applications

• Advanced RF and microwave measurement
• Multi-DUT and multiport device testing
• High-frequency automated test systems
• Production testing of RF/microwave components
• Multi-signal switching in laboratory and field environments
