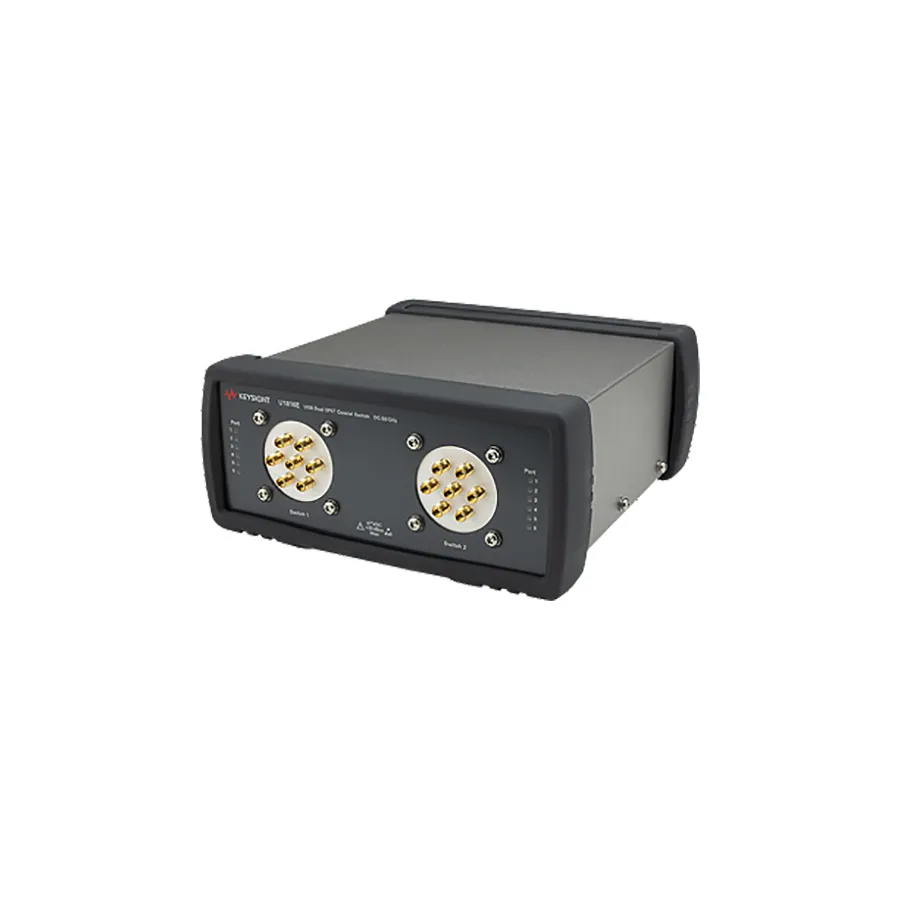

Keysight U1816E USB Coaxial Switch

Overview

The Keysight U1816E is a DC to 50 GHz USB-driven switch matrix consisting of two single-pole-six-throw (SP6T) switches. It enables switching of multiple signal paths without physically changing connections, allowing multiple tests with the same setup and eliminating frequent manual reconnections. The wide frequency range and excellent isolation make it ideal for extending the number of test ports in multi-DUT or multiport device measurement scenarios.

Key Features

• Frequency range: DC to 50 GHz
• Dual SP6T switching configuration
• USB interface for simple control and integration
• Excellent isolation for minimal crosstalk and signal integrity
• Low VSWR across the frequency range
• Extends test port count for multi-DUT measurements
• Automated switching without physical reconnections

Applications

• Multi-DUT and multiport device measurement
• RF/microwave test and measurement
• Automated test systems and high-volume production testing
• Multi-signal switching in laboratory and field environments
