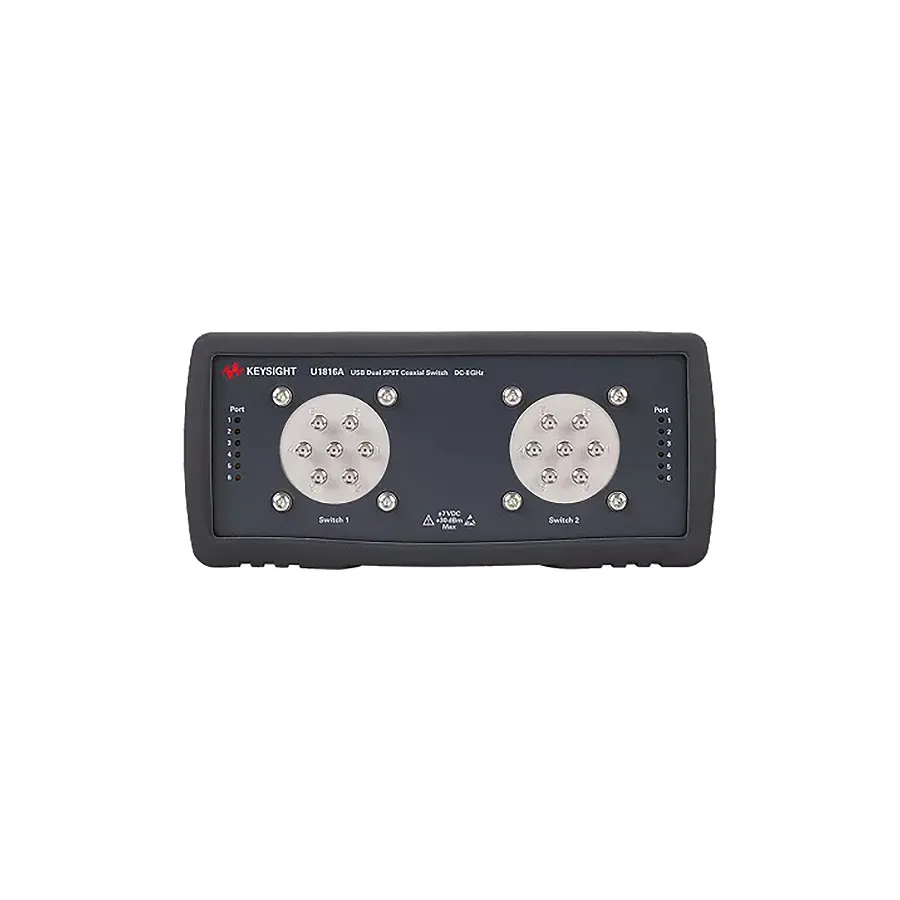

Keysight U1816A USB Coaxial Switch
Request a quote
Keysight U1816A is a dual SP6T USB coaxial switch matrix operating DC to 8 GHz with excellent isolation (min 100 dB) for automated multi-signal testing without physical reconnections.
Product details
| Model | U1816A |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight U1816A is a USB-driven switch matrix consisting of two single-pole-six-throw (SP6T) switches. It enables switching of multiple signal paths without physically changing connections, allowing multiple tests with the same setup and eliminating frequent manual reconnections. This design is ideal for increasing throughput in high-volume production test environments.
Key Features
- Frequency range: DC to 8 GHz
- Dual SP6T switches for extended test port count
- USB interface for easy integration
- Isolation (minimum): 100 dB
- SMA female connectors
- VSWR (maximum): 1.20 (DC to 4 GHz), 1.35 (4 to 8 GHz)
- Insertion loss (maximum): 0.3 dB + 0.015 × frequency (GHz)
- Operating life: 5 million guaranteed cycles (typical 10 million)
Applications
- Automated test systems requiring multi-signal switching
- Multi-DUT (device under test) measurement
- RF/microwave test and measurement
- High-volume production testing
Specifications
