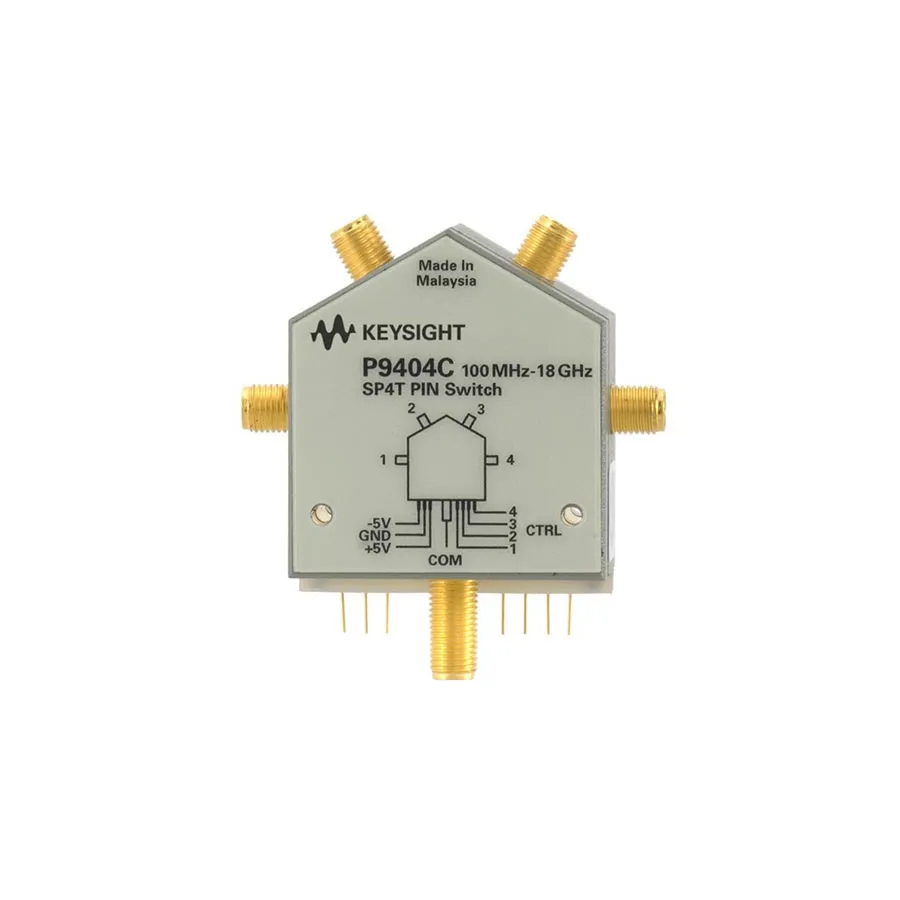

Keysight P9404C PIN Solid State Switch
Request a quote
Keysight P9404C is a PIN solid state switch offering 100 MHz to 18 GHz frequency range with > 80 dB isolation and ultra-fast < 380 ns switching speed.
Product details
| Model | P9404C |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight P9404C is a PIN solid state switch designed for high-speed RF and microwave switching applications. Operating across a frequency range of 100 MHz to 18 GHz, it provides superior performance in isolation, insertion loss, and return loss, making it ideal for switch matrixes in instrumentation, communications, and radar systems.
Key Features
- Ultra-fast switching speed of < 380 ns to increase throughput
- Port-to-port isolation exceeding 80 dB to minimize cross-talk
- Low insertion loss of 2.5 dB at 4 GHz
- Long switching life for reduced test system setup costs
- SP4T (Single Pole 4 Throw) configuration
- Frequency range: 100 MHz to 18 GHz
Applications
- RF and microwave switch matrixes
- Instrumentation systems
- Communications applications
- Radar systems
- High-speed manufacturing test systems
Specifications
