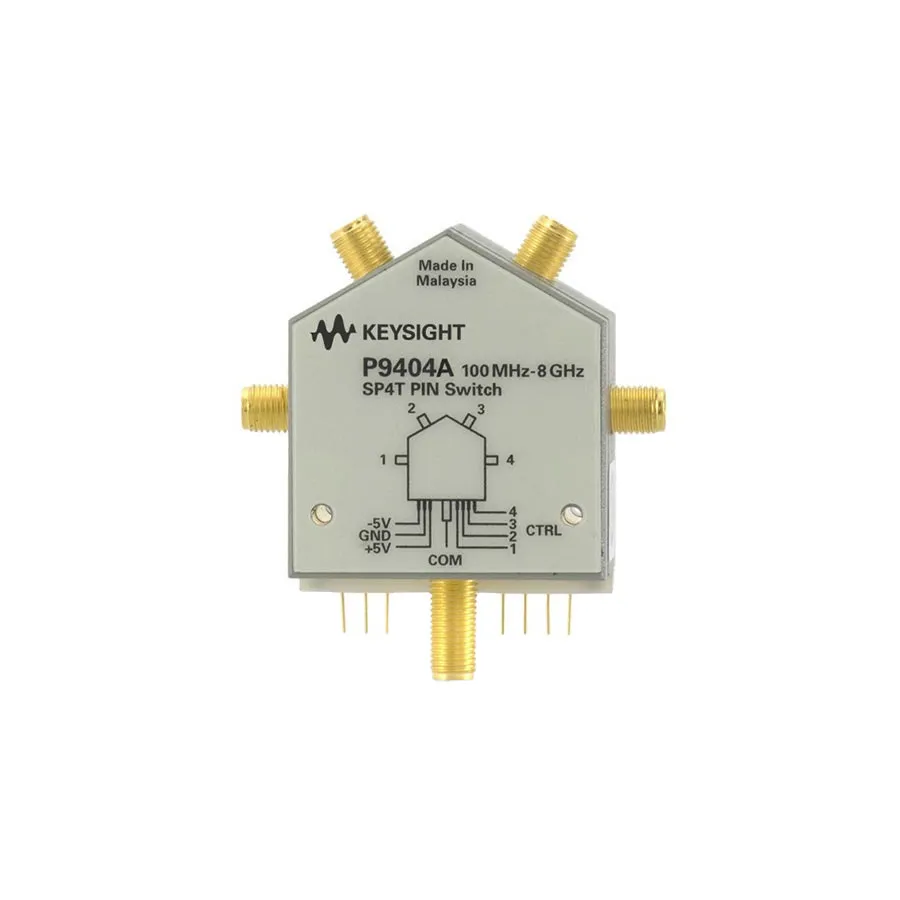

Keysight P9404A PIN Solid State Switch
Request a quote
Keysight P9404A is a PIN solid state switch offering 100 MHz to 8 GHz frequency range with > 80 dB isolation and ultra-fast < 380 ns switching speed.
Product details
| Model | P9404A |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight P9404A is a PIN solid state switch designed for high-speed RF and microwave switching applications. Operating across a frequency range of 100 MHz to 8 GHz, it provides superior performance in isolation, insertion loss, and return loss, making it suitable for switch matrixes in instrumentation, communications, and radar systems.
Key Features
- Ultra-fast switching speed of < 380 ns to increase throughput
- Port-to-port isolation exceeding 80 dB to minimize cross-talk
- Low insertion loss of 2.5 dB at 4 GHz
- Long switching life for reduced test system setup costs
- SP4T (Single Pole 4 Throw) configuration
- Frequency range: 100 MHz to 8 GHz
Applications
- RF and microwave switch matrixes
- Instrumentation systems
- Communications applications
- Radar systems
- High-speed manufacturing test systems
Specifications
