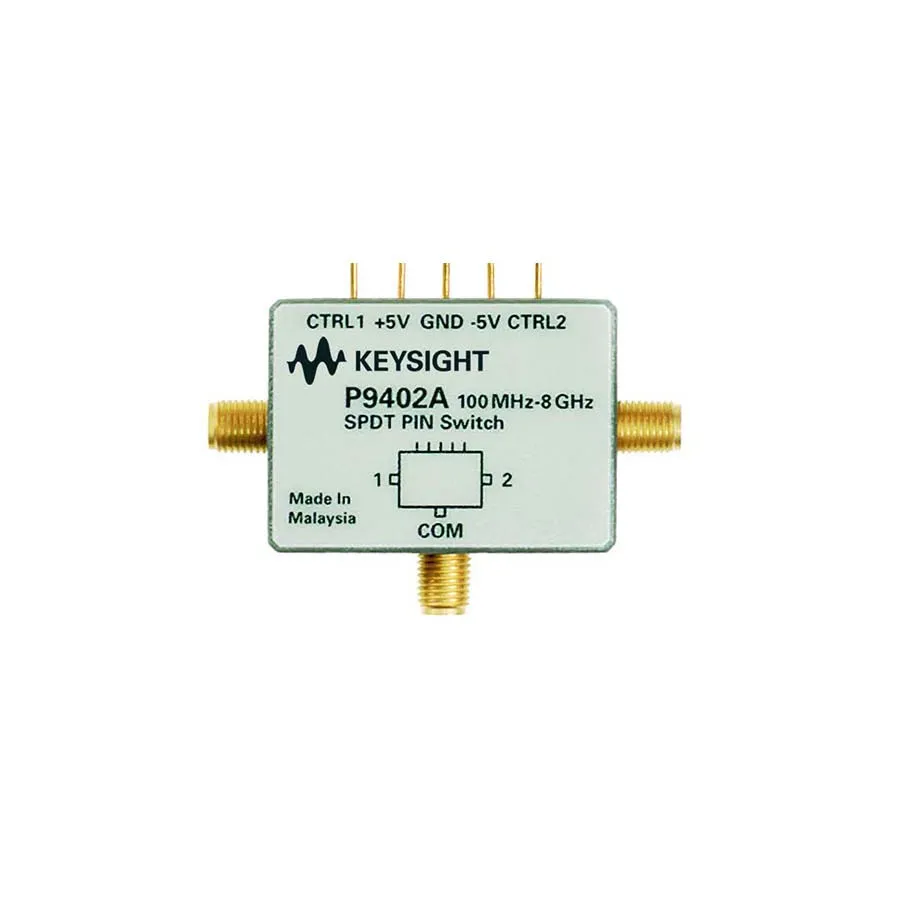

Keysight P9402A PIN Solid State SPDT Switch
Request a quote
Keysight P9402A is a PIN SPDT switch covering 100 MHz to 8 GHz with ultra-fast switching speed (<380 ns), high isolation (>80 dB), and low insertion loss (2.5 dB at 4 GHz).
Product details
| Model | P9402A |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight P9402A is a PIN solid-state SPDT (single-pole double-throw) switch engineered for RF and microwave switching applications demanding maximum throughput and reliability. Operating from 100 MHz to 8 GHz, it combines ultra-fast switching speed with high port-to-port isolation and minimal insertion loss. Its long switching lifetime and robust construction make it particularly suitable for high-volume manufacturing test environments and switch matrix systems where speed and consistency are critical.
Key Features
- Frequency range: 100 MHz to 8 GHz
- SPDT configuration (single-pole double-throw)
- Switching speed: <380 ns (ultra-fast)
- Port-to-port isolation: >80 dB
- Insertion loss: 2.5 dB at 4 GHz
- Long switching life for high-reliability applications
- Robust mechanical construction
Applications
- Manufacturing test systems for high-volume production
- RF and microwave switch matrices
- Signal routing and distribution
- Instrumentation and measurement systems
- Communications and radar test equipment
