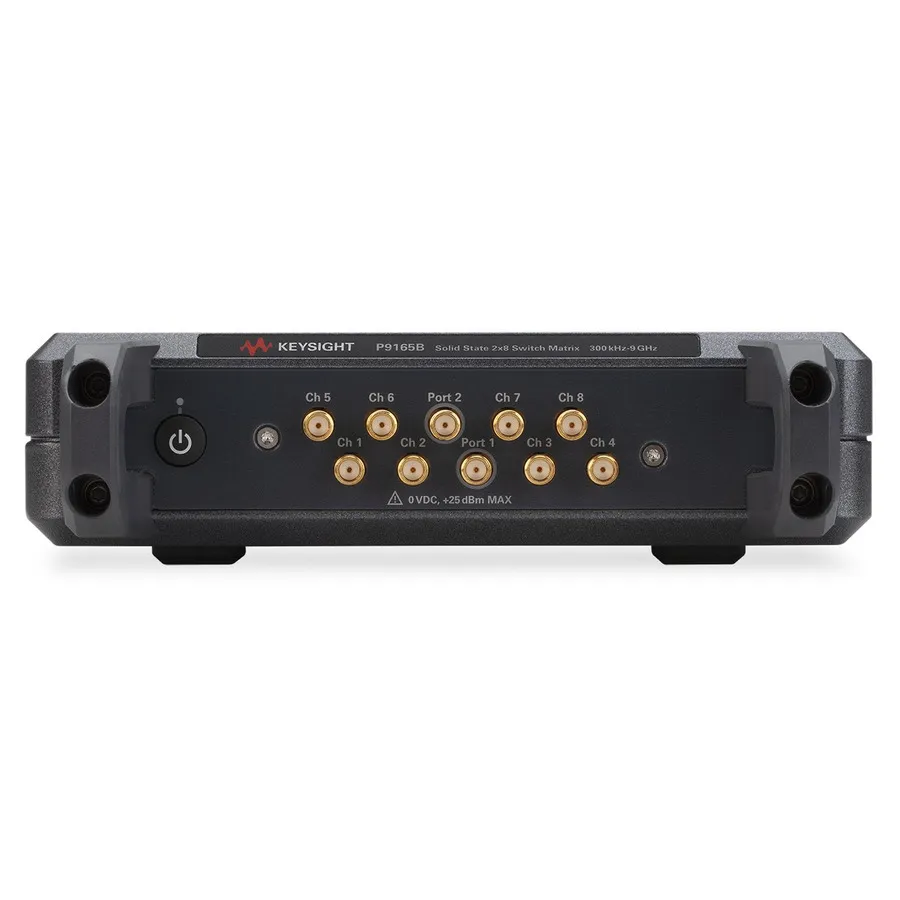

Keysight P9165B Solid State Switch Matrix
Request a quote
Keysight P9165B is a 2x8 USB-controlled solid state RF switch matrix operating from 300 kHz to 9 GHz with 90 dB isolation.
Product details
| Model | P9165B |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight P9165B is a 2x8 full crossbar solid state RF switch matrix designed for automated test applications. Operating from 300 kHz to 9 GHz, it provides fast switching with extended cycle life and unmatched isolation to minimize crosstalk in high-density automatic test equipment (ATE) systems. The P9165B supports both software-based control via a provided Soft Front Panel and IVI commands executed from the host computer.
Key Features
- Frequency range: 300 kHz to 9 GHz
- 2x8 full crossbar switch configuration
- Isolation: 90 dB (300 kHz–1 GHz), 88 dB (1–9 GHz)
- Fast switching speed: typical 50 µs (10% to 90%)
- Built-in temperature stability
- USB connectivity for simplified integration
- Maximum input power: 25 dBm
- SMA female RF connectors
Applications
- RF and microwave signal routing in automated test systems
- 5G massive MIMO antenna measurement
- Multi-DUT and multiport VNA measurements
- High-density ATE switching solutions
Included Accessories
- AC/DC Adapter
Specifications
| Frequency Range | 300 kHz to 9 GHz |
| Connector Type | SMA (f) |
| Series | P9165X Series |
| Includes | USB Solid State Switch Matrix, AC/DC Adapter |
| Number of Channels | 8 |
| Number of Ports | 2 |
