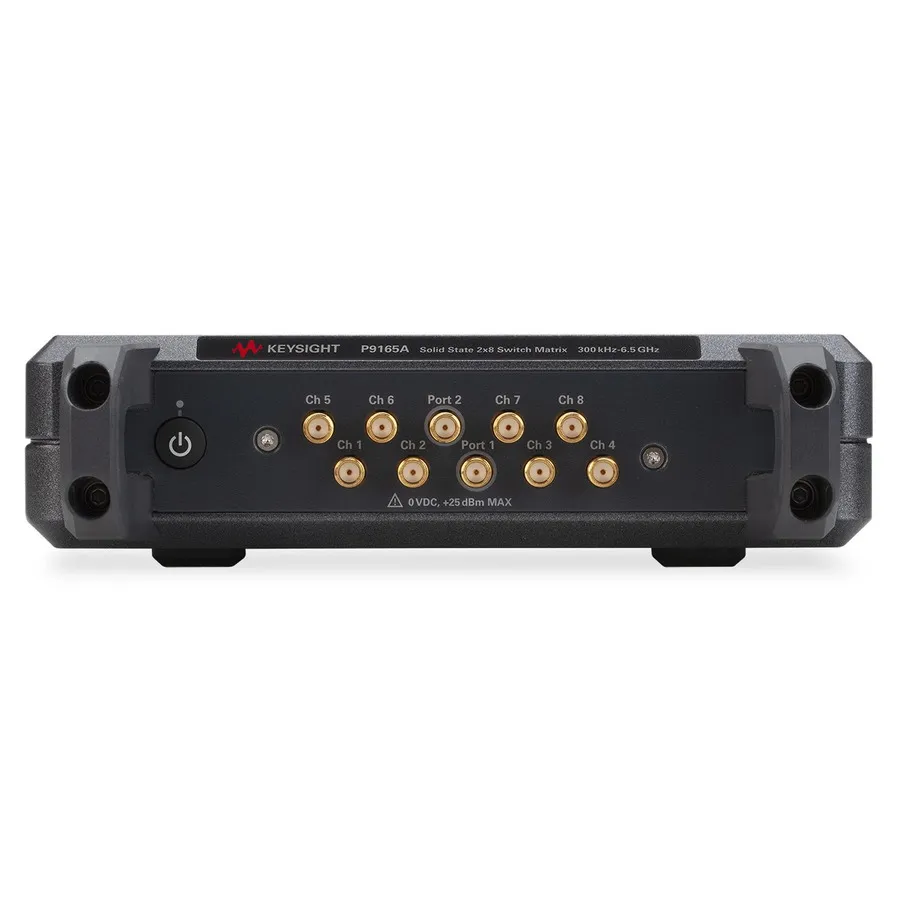

Keysight P9165A Solid State Switch Matrix
Request a quote
Keysight P9165A is a 2x8 USB-controlled solid state RF switch matrix operating from 300 kHz to 6.5 GHz with 90 dB isolation.
Product details
| Model | P9165A |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight P9165A is a 2x8 full crossbar solid state RF switch matrix designed for automated test applications. Operating from 300 kHz to 6.5 GHz, it provides fast switching with extended cycle life and unmatched isolation to minimize crosstalk in high-density automatic test equipment (ATE) systems. The P9165A supports both software-based control via a provided Soft Front Panel and IVI commands executed from the host computer.
Key Features
- Frequency range: 300 kHz to 6.5 GHz
- 2x8 full crossbar switch configuration
- Isolation: 90 dB (300 kHz–1 GHz), 88 dB (1–6.5 GHz)
- Fast switching speed: typical 50 µs (10% to 90%)
- Built-in temperature stability
- USB connectivity for simplified integration
- Maximum input power: 25 dBm
- SMA female RF connectors
Applications
- RF and microwave signal routing in automated test systems
- 5G massive MIMO antenna measurement
- Multi-DUT and multiport VNA measurements
- High-density ATE switching solutions
Included Accessories
- AC/DC Adapter
Specifications
| Frequency Range | 300 kHz to 6.5 GHz |
| Connector Type | SMA (f) |
| Series | P9165X Series |
| Includes | USB Solid State Switch Matrix, AC/DC Adapter |
| Number of Channels | 8 |
| Number of Ports | 2 |
