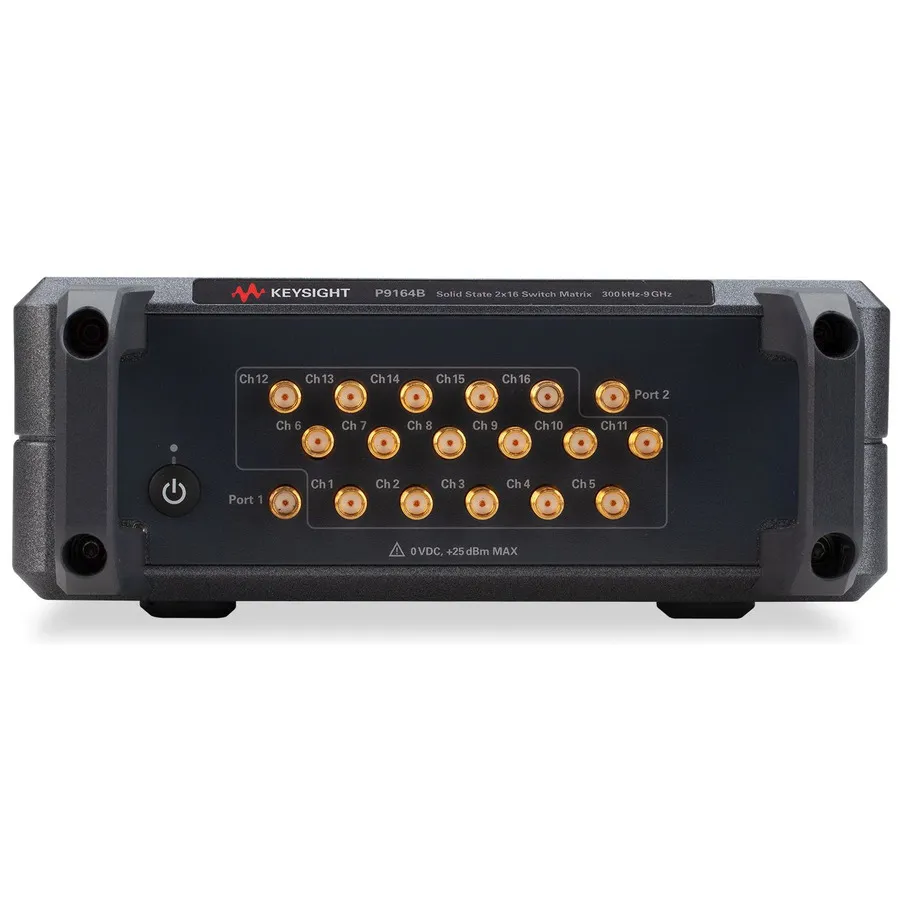

Keysight P9164B 2x16 USB Solid State Switch Matrix
Request a quote
Keysight P9164B is a 2x16 USB solid state switch matrix for RF signal routing in test applications, covering 300 kHz to 9 GHz with high isolation.
Product details
| Model | P9164B |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight P9164B is a 2x16 full cross-bar solid state switch matrix designed for RF and microwave signal routing in automated test applications. Operating from 300 kHz to 9 GHz, it provides a compact USB-controlled multiport solution ideal for multi-DUT measurements, including 5G massive MIMO antenna testing and other advanced RF applications.
Key Features
- 2x16 full cross-bar configuration for flexible signal routing
- Operating frequency range: 300 kHz to 9 GHz
- Fast switching speed (typical 50 µs) with ultra-long cycle life
- High isolation: 87 dB (300 kHz to 2 GHz), 85 dB (2 to 9 GHz)
- USB control interface with Soft Front Panel and IVI command support
- SMA (f) RF connectors for standard compatibility
- Built-in temperature stability for reliable operation
- Minimized cross-talk in high-density ATE systems
Applications
- Automated test equipment (ATE) for multi-port RF measurements
- 5G massive MIMO antenna characterization
- Multiport VNA solutions
- RF and microwave signal switching in test systems
- Generic standalone switching applications
Included Accessories
- P9164B USB Solid State Switch Matrix
- AC/DC Adapter
Specifications
| Frequency Range | 300 kHz to 9 GHz |
| Connector Type | SMA (f) |
| Series | P9164X Series |
| Includes | USB Solid State Switch Matrix, AC/DC Adapter |
| Number of Channels | 16 |
| Number of Ports | 2 |
