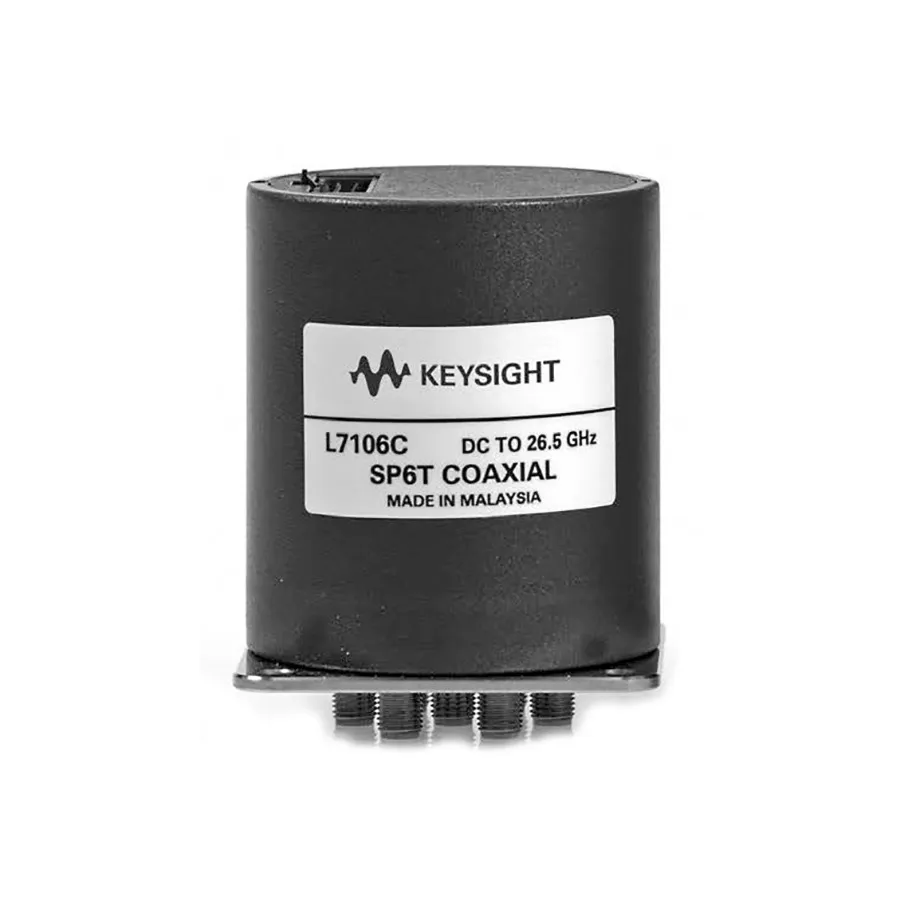

Keysight L7106C Multiport Coaxial Switch
Request a quote
Keysight L7106C multiport coaxial switch configured with 24 VDC bias and 16-pin DIP connector for RF signal routing, DC to 26.5 GHz, with 0.03 dB repeatability.
Product details
| Model | L7106C/024/161 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight L7106C is a terminated multiport electromechanical coaxial switch designed for RF and microwave signal routing and testing applications. This configuration includes 24 VDC power supply and a 16-pin DIP socket connector with 24-inch ribbon cable for flexible system integration.
Key Features
- SP6T configuration, terminated
- Frequency range: DC to 26.5 GHz
- Insertion loss repeatability: 0.03 dB maximum (up to 2 million cycles)
- Isolation: 90 dB minimum (DC to 12 GHz), with guaranteed performance to 26.5 GHz
- 24 VDC power supply option
- 16-pin DIP socket with 24-inch ribbon cable
- Electronic position indicator with magnetic latching
- Operating life: 5 million cycles typical
Applications
- RF signal routing in automated test equipment
- Microwave measurement and monitoring systems
- Manufacturing test and integration systems
- Signal path switching in laboratory applications
Specifications
| Series | L-Series |
