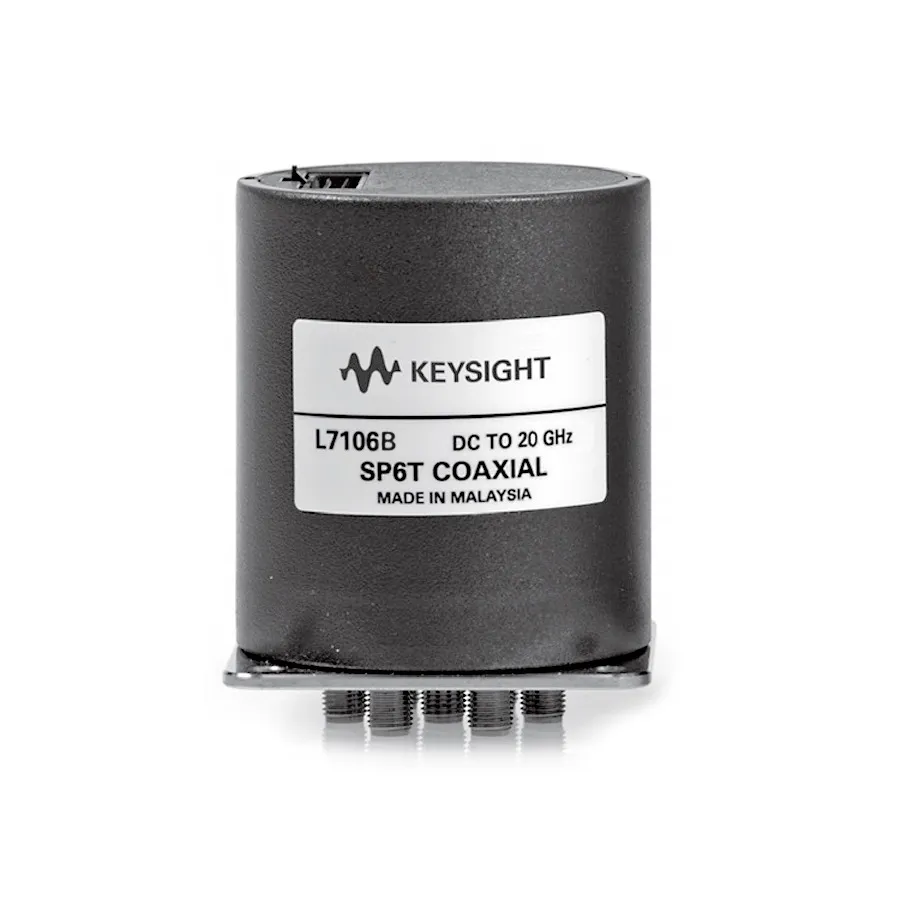

Keysight L7106B Multiport Coaxial Switch
Request a quote
Keysight L7106B multiport coaxial switch for RF signal routing and testing, DC to 20 GHz, with 0.03 dB insertion loss repeatability and 90 dB isolation.
Product details
| Model | L7106B/161/T24 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight L7106B is a terminated multiport coaxial switch designed for RF and microwave signal routing and testing applications. This electro-mechanical switch provides reliable performance with guaranteed repeatability and high isolation characteristics.
Key Features
- SP6T configuration, terminated
- Frequency range: DC to 20 GHz
- Insertion loss repeatability: 0.03 dB maximum (up to 2 million cycles)
- Isolation: 90 dB minimum (DC to 12 GHz)
- Electronic position indicator
- Magnetic latching with current interrupt capability
- Operating life: 5 million cycles typical
- SMA female connectors
Applications
- RF signal routing in test systems
- Microwave measurement systems
- Automated test equipment (ATE)
- Laboratory signal monitoring
Specifications
| Configuration | SP6T, terminated |
| Frequency Range | DC to 20 GHz |
| Insertion Loss | 0.3 dB + 0.015 × frequency (GHz) |
| Isolation | 90 dB minimum (DC to 12 GHz), 70 dB minimum (12 to 15 GHz), 65 dB minimum (15 to 20 GHz) |
| SWR | 1.2 maximum (DC to 4 GHz), 1.35 maximum (4 to 12.4 GHz), 1.45 maximum (12.4 to 18 GHz), 1.7 maximum (18 to 20 GHz) |
| Repeatability | 0.03 dB maximum (up to 2 million cycles at 25°C) |
| Operating Life | 5 million cycles typical |
| Connectors | SMA (female) |
