Keysight 8765D Coaxial Switch, SPDT, DC to 40 GHz, 24 Vdc
Request a quote

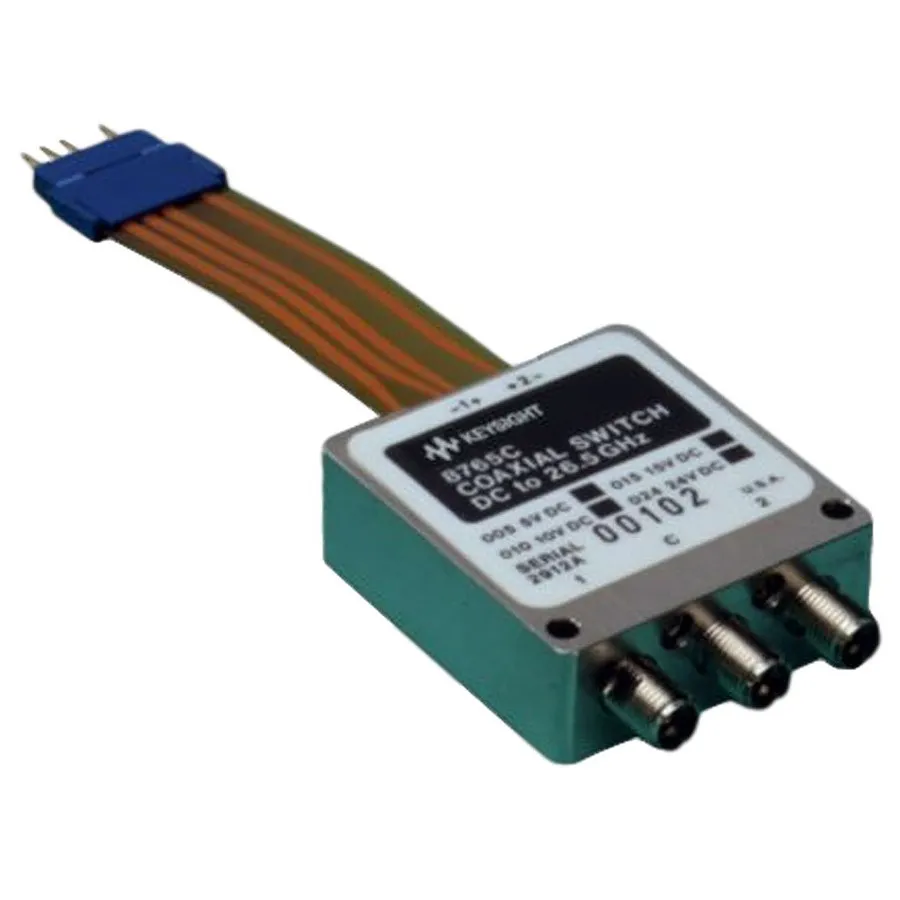

Keysight 8765D/292/324 SPDT coaxial switch with 2.92 mm connectors, 24 Vdc power, and coverage from DC to 40 GHz.
Product details
| Model | 8765D/292/324 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight 8765D is a high-performance coaxial switch for RF and microwave measurement systems. Designed with rugged reliability and excellent repeatability, this SPDT (single-pole double-throw) configuration delivers superior performance across DC to 40 GHz frequencies. The 8765D/292/324 variant combines 2.92 mm female connectors with 24 Vdc supply voltage and solder terminal connections for direct integration into automated test systems.
Key Features
- Single-pole double-throw (SPDT) configuration
- Break-before-make switching action
- Unterminated design for system flexibility
- Frequency coverage: DC to 40 GHz
- Insertion loss: < 0.2 dB + 0.023 dB/GHz (to 26.5 GHz); 0.75 dB + 0.023 dB/GHz (to 40 GHz)
- Isolation: 110 dB - 2.25 dB/GHz
- 2.92 mm female connectors
- 24 Vdc power supply with solder terminals
Applications
- Automated test equipment (ATE) switching systems
- RF and microwave measurement systems
- Signal routing and switching in high-frequency applications
Specifications
| Series | 8765X Series |
