Keysight 8764B/T24 Coaxial Switch
Request a quote

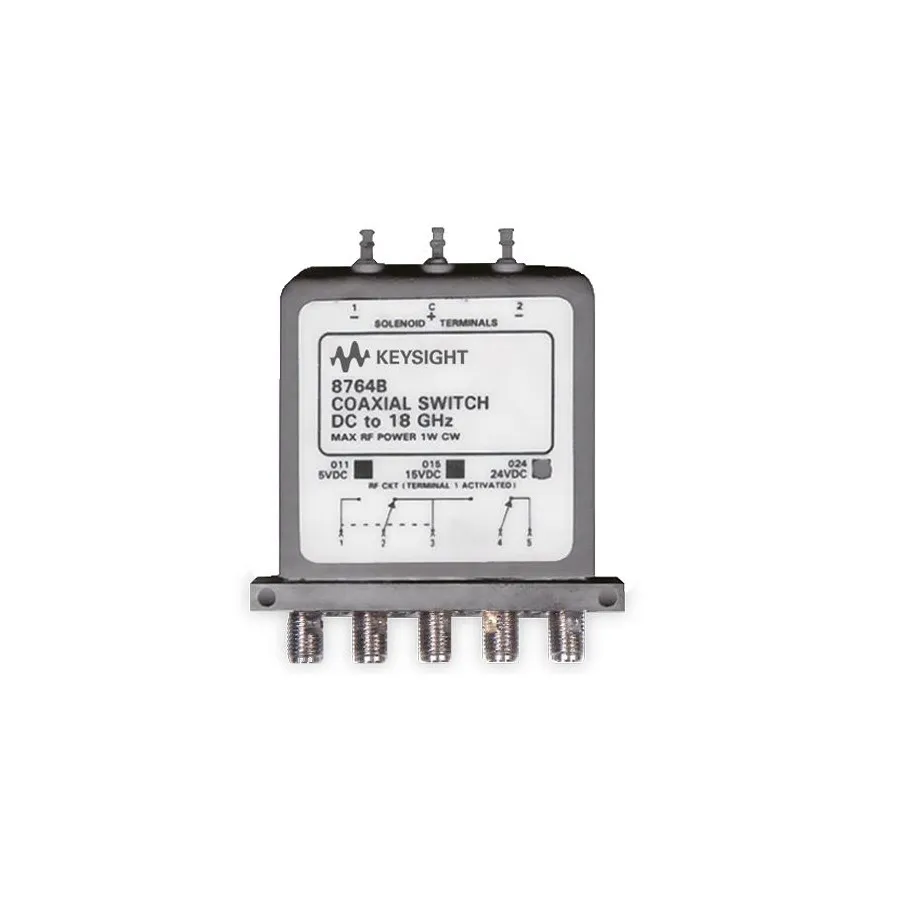

Keysight 8764B/T24 is a 5-port RF coaxial switch for DC to 18 GHz with TTL logic control and 24V solenoid configuration for RF test systems.
Product details
| Model | 8764B/T24 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight 8764B/T24 is a 5-port unterminated multiport coaxial switch designed for RF and microwave test applications. This variant features TTL/5V CMOS compatible control with 24V solenoid actuators, providing excellent broadband performance with high isolation and low standing wave ratio.
Key Features
- Frequency range: DC to 18 GHz
- Unterminated multiport coaxial switch with five RF ports
- TTL/5V CMOS compatible control with 24V solenoid configuration
- Insertion loss: less than 0.20 dB up to 2 GHz, less than 0.5 dB up to 18 GHz
- SWR (through line): less than 1.10 DC to 2 GHz, less than 1.20 up to 12.4 GHz, less than 1.30 up to 18 GHz
- Port-to-port isolation: greater than 90 dB across the frequency range
- Long operational life: greater than 1 million switching cycles
- Insertion loss repeatability: less than 0.03 dB typical
- Current interrupt and position indication capability
Applications
- RF and microwave test and measurement systems
- Automated test equipment (ATE) in manufacturing
- Laboratory and bench-top testing
- Signal routing in broadband systems
